[October 26, 1968] Phoenix from the Ashes (Apollo-7)

1 Comment


by Kaye Dee

In early October Wernher von Braun said that he was “beginning to doubt” America's ability to land an astronaut on the Moon before the Russians, following the Soviet success with its automated Zond-5 mission. But speaking just a few days ago, General Sam Phillips, the Apollo Programme Manager, has described the recently completed Apollo-7 flight as “a perfect mission. We accomplished 101 percent of our objectives”. With both the United States and the Soviet Union finally back in space following the tragedies that struck their respective space programmes in 1967 (an article on Soyuz-2 and 3 is coming soon), NASA has risen from the ashes of the Apollo-1 fire and is once again on track to achieve its manned lunar landing goals.


A Critical Test Flight
Possibly no NASA mission has been more critical to the future of US spaceflight than Apollo-7. The main purpose of the mission has been to prove that the new Block II Apollo spacecraft, extensively redesigned after the Apollo-1 fire, is capable of performing the 480,000-mile round trip to the Moon. If Apollo-7 did not establish the overall safety and performance of the new CM design, von Braun’s pessimism would probably be proved right!

The four critical mission objectives were:

  • test the spacecraft’s navigation and guidance systems in the performance of an orbital rendezvous;
  • prove the Service Propulsion System (SPS) engine’s performance and reliability;
  • demonstrate the safety of the redesigned Command Module (CM) and the performance of its life support systems over the duration of a lunar mission; and,
  • carry out a precise re-entry and splashdown.


The Apollo-7 crew. L – R: LM Pilot Walter Cunningham, CM Pilot Maj. Donn Eisele and mission commnader Capt. Wally Schirra. They were rarin' to go!

The First Team
With a lot riding on their shoulders, the crew of the first successful manned Apollo mission unusually combined a seasoned veteran astronaut with two rookies. Originally the back-up crew for Apollo-1, the three astronauts of Apollo-7 all have US Navy connections.

Mission commander Navy Captain Walter (Wally) Schirra, 45, is the oldest man to make a spaceflight so far. One of the original Mercury astronauts (MA-8 Sigma-7, 1962), he was also the Command Pilot for the Gemini-6 mission in 1965. Apollo-7 makes Schirra the first astronaut to fly all three types of US manned spacecraft. Rumour has it that Capt. Schirra was not particularly interested in making a third spaceflight prior to the loss of Apollo 1 but stepped up to the challenge of ensuring that Apollo-7 was a success in honour of his lost friend, Apollo-1 Commander Gus Grissom. This seems to be borne out by the fact that he announced his intention to resign from NASA two weeks before the launch of his flight.

Apollo-7’s two rookie astronauts both come from Group 3, selected in 1963. 38-year-old Major Donn Eisele (USAF), designated Command Module Pilot, graduated from the US Naval Academy but was commissioned in the Air Force. Originally slated as a member of the Apollo-1 crew, he was switched to the back-up team due to a shoulder injury. Major Eisele has specialised in the CM’s new digital guidance and navigation computer, which is vital for conducting rendezvous during lunar missions.

Mr. Walter Cunninham, 36, is a civilian scientist with a military background. Nominally the Lunar Module Pilot (even though Apollo 7 did not carry a LM), he assumed the role of the crew’s general systems expert on this flight. With a Master’s degree in physics, Mr. Cunnigham spent three years as a physicist at the RAND Corporation before becoming an astronaut, but he is also a former Marine pilot who saw service in Korea and currently a Major in the Marine Corps reserves.

Symbolising a Test Flight
Apollo-7’s mission patch was designed by North American Rockwell artist Allen Stevens, who also created the Apollo-1 patch. Its similar design to the earlier patch depicts an Apollo Command Service Module (CSM) circling the globe trailing a tail of orange flame – a reference to the test firings of the CSM’s SPS engine. The navy-blue background symbolises the depths of space: it’s also a nod to the Navy background of the crew. Centred in the design, North and South America are flanked by blue oceans, with a Roman numeral VII appearing in the Pacific Ocean region. The crew’s names appear around the patch’s lower rim.

Although refused permission by NASA, Capt. Schirra apparently wanted to name his ship “Phoenix”. I can’t help wondering what mission patch design we would have seen had the name been allowed. We do know, however, what the patch would have looked like (as envisioned by the daughter of backup Commander Tom Stafford) if Eisele's whimsical name "Rub-a-dub-dub" had been adopted…



A Safer Spacecraft
Apollo-1’s CM was a Block I type, designed for Earth orbital missions, while Apollo-7 has been a shakedown test for the redeveloped Block II Command Module specifically designed for lunar voyages and able to dock with a Lunar Module (LM). Following the fire, the Block II CM was significantly redesigned to reduce or eliminate fire hazards (especially the use of flammable materials) and increase astronaut safety: many of these modifications, particularly a fully-redesigned quick-opening crew hatch for emergency escape from the spacecraft, were tested on the unmanned Apollo-4 and 6 flights. Emergency breathing masks and a fire extinguisher were also added to the cabin.

Experiments with starting fires in the redesigned cabin have also led to another crew safety enhancement: NASA now uses a 60/40 oxygen/nitrogen atmosphere in the CM during launch, before switching to a lower pressure pure oxygen inflight environment about four hours after lift-off. The astronauts’ spacesuits, and their new casual flight suits, have also been redeveloped using fire retardant materials.

Luxury Accommodation
Compared to NASA’s previous Mercury and Gemini spacecraft, the Apollo CM is a luxury suite, its greater interior volume allowing the crew to move around freely in zero gravity. Beneath the flight couches, where the crew sit for launch and re-entry, there is room for “sleeping quarters”, where two astronauts can zip themselves into sleeping bags underneath their flight seats to keep from floating around.

With ample water provided by its fuel cells, and new food preparation and packaging techniques, the Block II spacecraft finally gives NASA’s astronauts the opportunity to enjoy hot meals! The CM provides both hot and cold water dispensers to rehydrate food packages. Capt. Schirra, a coffee lover, enjoyed his first pouch of inflight instant brew just five hours after launch!

The expanded Apollo flight menu now offers some 60 different food choices, not all of which are dehydrated. Thermostabilisng techniques allow some foods, like frankfurters, to be eaten in their natural state, while small slices of bread, covered in a coating to prevent them crumbling, can now be enjoyed – although judging by the Apollo-7 crew’s complaints about crumbly food, this may not have been entirely successful.

Some of the new bite-size, possibly crumbly, foods available to Apollo astronauts

Bending the Rules
On 11 October (US time), almost four years to the day after the launch of the three-man Voskhod-1 spacecraft, Apollo-7 lifted off from Cape Kennedy Air Force Station's Launch Complex 34 on its crucial test flight. Since the LM is still not ready for spaceflight, and so could not be tested during this mission, a Saturn 1B lofted the mission into orbit.

High-altitude winds threatened to scrub the lift-off, as a post-launch abort might have seen the CM blown back over land, instead of splashing down in the ocean, potentially exposing the crew to serious injury. Mission commander Schirra disagreed with the decision by NASA managers to waive the wind restriction, but finally yielded. However, his unhappiness over this issue may have contributed to his further disputes with Mission Control during the flight.

Despite Schirra reporting the ride to space as “a little bumpy” a few minutes into the flight, ten minutes and 27 seconds after liftoff Apollo-7 was smoothly inserted into its elliptical low Earth orbit.

Coming Together
Rendezvous and docking practice, demonstrating that the CM’s navigation and guidance systems could successfully handle this vital technique for lunar missions, was a major element of the Apollo-7 flight plan, and the first major exercise began within three hours after launch.

Although Apollo 7 was not carrying a Lunar Module, the Spacecraft-LM adapter (SLA) that would normally house one was mounted on top of the Saturn 1B’s S-IVB second stage, carried into orbit to be used as a rendezvous target.

With the S-IVB still attached to the CSM, the astronauts manoeuvred as if conducting the necessary engine burn for Trans Lunar Injection. After separation from the S-IVB, Schirra put his Gemini rendezvous experience to good use, manoeuvring Apollo-7 towards the rocket stage and closing in as if to dock. This simulated the manoeuvre needed to extract the LM from the SLA. He then flew in formation with the stage for 20 minutes, before moving about 76 miles away to prepare for the first practice rendezvous.

Apollo-7's S-IVB stage, with the SLA petals open to reveal the docking target. The target was designed by Royal Australian Air Force opthalmologist, Dr. John Colvin. (note that one of the petals did not quite open all the way, restricting some of the possible maneuvers)

Power and Precision
The initial rendezvous exercise, occurring about 30 hours after launch, included the first inflight test of the Service Module’s powerful Service Propulsion System engine. Although tested on the ground, the SPS had never yet been fired in space, despite being vital to the success of a lunar mission: its 20,000 pounds of thrust is needed to slow the Apollo spacecraft into orbit around the Moon and propel it on its way back to the Earth. The SPS has to be totally reliable – it must work, every time.

The purpose of the rendezvous itself was to demonstrate the CSM’s ability to match orbits with a LM returning from the lunar surface, or an aborted landing attempt, even without an operating onboard radar (which Apollo-7 lacked, though later missions will have one). The SPS rendezvous burns were computed at Mission Control, but the final manoeuvres to close on the S-IVB saw Major Eisele making observations with the CM’s telescope and sextant to compute the final burns using the onboard guidance computer.

When the SPS engine ignited for the first time, Eisele was apparently startled by its violent jolt, while Schirra yelled excitedly “Yabba Dabba Do! – That was a ride and a half!” The inaugural nine-second burn went perfectly, and Schirra completed the rendezvous using the ship's reaction control system (RCS) thrusters, bringing Apollo-7 to within 70 feet of its tumbling target. The exercise successfully demonstrated that, even without radar data, an Apollo Command Module pilot could effect a rendezvous in lunar orbit.

A (Mostly) Smooth Mission
For the most part, Apollo -7 could be described as a “smooth” mission, with few real technical problems. The flight plan was “front-loaded”, with the most important experiments and activities scheduled for the early part of the mission, in case problems forced an early return to Earth. By day five of the mission, Flight Director Glynn Lunney estimated that the astronauts had already accomplished 70 to 75 percent of the planned test objectives.

The SPS engine was fired eight times in total, working perfectly every time and proving its reliability. The crew tested the fuel cells and battery chargers and checked out the cooling capacity of the thermal control system, putting the CSM into “barbecue mode,” rolling slowly around its long axis to distribute the heat load evenly over the spacecraft skin. Major Eisele thoroughly tested the sextant, telescope and guidance computer: even when vented, frozen urine crystals obscured his star targets, he proved that the optical instruments could provide sightings accurate enough to steer a spacecraft to and from the Moon.

It obviously wasn't easy for Maj. Eisele to take star sightings during the rendezvous exercise!

But the mission did experience a few technical issues. A power failure briefly struck Mission Control abut 80 minutes after launch. A mysterious “fuzz” or fog partially obscured the spacecraft’s windows, blurring the external view, although it gradually eased as the mission progressed, enabling photographic observations of the Earth (there are early indications that this may have been due to window seals outgassing). Perhaps the most annoying problem was the difficulty of using the crew’s “solid waste disposal system” – bags taped to an astronaut’s buttocks into which he excreted. The process proved to be very messy and rather smelly!

Despite issues with window fogging, the Apollo-7 crew has returned impressive images like these, showing the Gulf of Mexico (top) and Hurricane Gladys (bottom)

Grumpy Astronauts
About 15 hours into the flight, Schirra reported that he was experiencing a head cold. Unfortunately for him, a cold in space quickly becomes a miserable experience, because congested sinuses don’t drain in weightlessness. Cunningham and Eisele also developed stuffy noses and dry nostrils, but as they experienced colds a few days before the flight, flight surgeons believe that their condition may have been due more to breathing pure oxygen for long periods.

An astronaut with a head cold is not a happy man!

Despite the use of aspirin and decongestant tablets, the cold made Schirra tired and irritable and prone to sharp exchanges with Mission Control. When Houston suggested early in the mission to add some new engineering tests into the already busy flight plan and power up the TV system ahead of schedule to check the circuits, the mission commander testily refused, citing scheduling pressures and the need for the crew to eat. Over the first few days, Schirra repeatedly delayed the scheduled public television broadcasts, considering them non-essential.

Throughout the flight, the crew had difficulty sleeping, particularly as NASA insisted that at least one astronaut was always on duty to monitor the new spacecraft’s systems during the crucial test flight. Lack of sleep and exhaustion from working long hours on a packed flight plan undoubtedly contributed to the crew’s irritability throughout the mission.

Are You a Turtle?
Capt. Schirra has a reputation for playing practical jokes and "gotchas" and decided at one point to take out his frustrations on fellow astronaut and Director of Flight Crew Operations Deke Slayton. Both men are members of a private club, which has a joking requirement that if one member asks another "Are you a turtle?" the person so asked must immediately respond with a specific vulgar reply, or else buy drinks for everyone who heard the question.

Slayton had tried to catch Schirra out during his Mercury flight by publicly asking on an open communication if Schirra was a turtle. The Apollo-7 commander decided to "return the favour" during this mission by mischievously holding up a card during the second television broadcast from the spacecraft that said "Deke Slayton, are you a turtle?" Slayton avoided giving the rude answer in a public broadcast by recording it to be played to the crew after the mission.

The Mission Commander is in Command!
Perhaps the most serious disagreement between Schirra and Mission Control arose over the issue of whether or not the astronauts would wear their space helmets during re-entry. During the descent from orbit, cabin pressure rises from 5.9 to 14.7 psi (sea level pressure). Still suffering from his head cold Capt. Schirra apparently feared a sealed helmet would prevent him from pinching his nostrils to equalise the pressure, possibly leading to a ruptured eardrum. Although helmets protect the astronauts from cabin depressurisation and landing impact forces, Schirra stood on his right to make a decision as the mission commander and insisted that the crew would not wear their helmets for re-entry.

The discussion between Apollo-7 and the ground became quite heated on this point. Although Mission Control finally acquiesced to Schirra’s decision, comments suggest that they were exasperated and surprised by the astronauts’ testiness throughout the mission, which was definitely a departure from the usual respectful communications between space and the ground. While Capt. Schirra may have been prepared to speak his mind and have his way because he has already decided to leave NASA and has nothing to lose, I wonder if the clashes between the crew and Mission Control will impact upon the careers of Major Eisele and Mr. Cunningham?

“From the Lovely Apollo Room”
Despite Schirra’s early refusal to conduct television tests, the crew became TV stars when the first live television broadcast from an American spacecraft finally occurred on 14 October. Technical limitations with the television system meant that the live broadcast was restricted to the United States, but the audience was reportedly treated to a lively piece of entertainment, with Cunningham as camera operator and Eisele as MC.

Drawing from an old radio tagline, the “Apollo-7 Show” opened with a card reading “From the lovely Apollo Room high atop everything”. The seven-minute broadcast treated viewers to a look inside the spacecraft and showed views of Lake Pontchartrain and New Orleans, before closing with Schirra holding up another sign reading “Keep those cards and letters coming in folks”, another radio tag line re-popularised by Dean Martin.

For the rest of the mission, daily television broadcasts of about 10 minutes each took place, with the crew holding up more fun signs and describing how the Apollo spacecraft worked. Since the broadcasts seem to have been very popular with audiences in America, I wonder if television’s newest stars might find themselves in line for an Emmy Award next year?

Back to Earth
Without the crew wearing helmets, Apollo 7 made a successful re-entry on 22 October splashing down about 200 nautical miles SSW of Bermuda, with a mission duration of 10 days, 20 hours, 9 minutes and 3 seconds. The conical CM landed upside down in the water, although it was soon righted with the use of floatation bags. However, the inverted position apparently interfered with communications, giving Mission Control an agonising 10-minute wait for contact to be established by search helicopters and aircraft.

The astronauts’ arrival by helicopter on the recovery ship USS Essex was carried live to the world on television, relayed via satellite – although we here in Australia were not able to see most of the broadcast due to technical difficulties. Despite the issues with colds and stuffy noses, the crew experienced no trouble during re-entry and are said to be generally in good health. They are now back in Houston, facing three weeks of technical debriefings and medical tests.

While the disagreements between the crew and Mission Control may have cast a shadow, Apollo-7 is being hailed as a technical triumph, with the mission successfully verifying the flightworthiness of the redesigned Command Module and SPS engine.

What comes next?
Even before Apollo-7 launched, Apollo Spacecraft Manager George Low proposed that, with the delays in the construction of the LM, Apollo-8 should be a manned circumlunar flight, to build programme momentum and pre-empt a possible similar mission by the USSR. This mission prospect was being openly discussed while Apollo-7 was in orbit. With its safe and successful return, let’s hope a decision will be made very soon on this ambitious and exciting next step in space exploration: Apollo-8 is already on the pad!

1 Comment Leave A Comment
Fashion, music, politics, sports

[August 28, 1968] The Carnival is Over (The Seekers Break Up)

Leave a comment


by Kaye Dee

Without a doubt, Australia’s most famous musical export would have to be The Seekers, the folk-pop quartet from Melbourne who burst onto the international stage in 1964 and have given The Beatles and The Rolling Stones a run for their money when it comes to Top Ten hits. So, even with persistent rumours for some months that the band might soon break up, it comes as something of a surprise that, at the height of their fame, The Seekers announced in July that they have decided to go their separate ways.

The Seekers at the 1966 Royal Command Performance at the London Palladium

Singing for their Supper
The Seekers – Athol Guy (28), Keith Potger (27), Bruce Woodley (26) and Judith Durham (25) – formed in Melbourne in 1962. But how did a group of clean cut, coffee-house musicians – all of them with middle-class day jobs – become a hot property in the booming British pop scene and a household name on three continents?

When the group was formed, none of its members were newcomers to the local music scene. The three male members had all attended the same Melbourne school and had their own bands before forming a new “doo wop” band, the Escorts, with singer Ken Ray. This group then transformed into The Seekers in 1962 as the folk music movement grew in Melbourne.

At the same time, Miss Durham, blessed with perfect pitch and originally planning to become an opera singer, was carving out a place in the local jazz scene. As the lead vocalist with a top Melbourne jazz band, “Judy” Durham had already released an EP with a local record label. With her beautiful and versatile voice, she can sing jazz, opera, blues and gospel – and there is no question that Judith Durham’s vocal talents have been a major factor in The Seekers’ success over the past six years.

When Ken Ray married and left the Seekers, Miss Durham was working at the same advertising agency as Athol Guy, and he recruited her as Mr. Ray’s replacement, creating The Seekers as we know them today: Judith Durham, the lead vocalist, also performing piano and tambourine; Athol Guy on double bass and vocals; Keith Potger on twelve-string guitar, banjo and vocals; and Bruce Woodley on guitar, mandolin, banjo and vocals.

On the cover of The Seekers first album, Keith Potger was replaced by former Seeker Ken Ray, because his day job as a radio producer at the Australian Broadcasting Commission barred him from involvement in a commercial enterprise. (L-R: Judith Durham, Ken Ray, Bruce Woodley and Athol Guy).




Breaking Into the Australian Charts
Miss Durham’s golden voice and the group’s folk-influenced sound quickly made them popular in Melbourne, although they were largely unknown outside it. When her previous connection with local record label W&G provided the opportunity for a recording contract, The Seekers released their debut album "Introducing The Seekers" in 1963, opening the way to reach a national audience.

In the liner notes for the album, The Seekers described their approach to their music: “We don't claim to be folk singers in the true sense of the word. Then again, we don't regard ourselves as being ‘commercial’. Why? Because we sing the songs we like, the way we like and the way we think people will like to hear them. No long-haired ethnic purity for us, it's more fun our way.”

Two tracks were released as singles, with their version of Australia’s unofficial national anthem “Waltzing Matilda” charting in the Top 40 in Melbourne, and the Top 100 nationally. Obviously, people did like to hear The Seekers singing what they liked, their way.

Sailing Away to International Fame
Since the 1950s, many Aussie entertainers seeking fame and fortune have headed off to Britain to try their luck in its larger, more vibrant entertainment industry, and in 1964, The Seekers decided that the time had come for them to follow suit. With a year-long contract to work as the house band on a cruise ship, the group departed Australia in March.

The Seekers planned to work in the UK and get some exposure for their music during the ten-week layover there before working the return cruise to Australia. Shrewdly, the group sent copies of their album and promotional photographs ahead of them to London talent agencies, hoping this might help them line up some work once they arrived. The tactic was successful, and once in London in May, the group discovered that a top agency had taken them on and already booked them on national TV shows, and on the UK variety theatre and club circuit.

Their planned “working holiday” almost immediately turned into a full-time career, with important London bookings and television appearances, a UK recording deal and the release of their first UK single, “Myra”. This was quickly followed by two studio albums and, at the end of 1964, their first big hit “I’ll Never Find Another You”.

What made The Seekers (deprecatingly described by some in the British press as “three bank tellers and a secretary” due to their conservative style of dress and a lifestyle that was definitely not “sex, drugs and rock’n’roll”) such a marketable property in a British pop scene fuelled by teen angst and teenage rebellion?

Internationally successful folk acts like Peter, Paul & Mary had paved the way for The Seekers’ sound, the product of Judith Durham’s pure and powerful voice and the “nice harmonies” of the three men. With their clean-cut good looks, equally clean-cut voices and quiet dress, they appealed to English squares because they represented something they could understand and feel comfortable with, while at the same time their catchy tunes and soulful ballads, and their sheer musical talent attracted a wide range of audiences. The conservative BBC loved them, because their music contained no offensive lyrics, and their performances no outlandish behaviour, meaning that they received a large amount of air time on radio and television, which gave them wide exposure.

A Match Made by a Manager
Many of the catchy tunes that repeatedly propelled Seekers to the top of the charts, commencing with “I’ll Never Find Another You” (apparently recorded at the famous Abbey Road Studios by day while The Beatles were recording there at night), were written expressly for The Seekers by singer-songwriter-producer Tom Springfield, brother of Dusty Springfield. In a clever move, the agent managing The Seekers introduced them to Mr. Springfield shortly after he had split with his sister. Tom Springfield felt that The Seekers’ style of singing and performance would suit the particular kind of music he preferred to write. He became their resident songwriter, signing the group to his production company.

In November 1964 “I'll Never Find Another You” became a massive worldwide hit, reaching Number 1 in Australia and the UK, and Number 4 in the US. It also rated highly in Europe and eventually sold 1.75 million copies worldwide. This earned The Seekers a place in the record books as the first Australian pop group to have a Top 5 hit simultaneously in the Australian, UK and US markets, as well as the first to sell over a million copies of a single.


A World of Their Own
You could say that 1965 was the year that The Seekers conquered the world, with hit after hit rising up the charts! “A World of Our Own”, “Morningtown Ride”, and my favourite, “The Carnival is Over”, were all Top Ten hits, as was their 1965 album release. With its melody apparently drawn from a Russian folk song, “The Carnival is Over” reached Number 1 in the UK, even overtaking The Rolling Stones' “Get Off My Cloud”! I’ve heard that the single sold over 90,000 copies per day in Britain, which is no mean feat.

The Seekers receiving their gold record in Australia for "The Carnival is Over"








Winning the Top of the Pops Best New Group of 1964, The Seekers starred in the New Musical Express “All-Star Poll Winners Concert” in April 1965, on a bill that included the cream of the British pop scene – The Beatles, The Rolling Stones, Cliff Richard, Dusty Springfield, The Who and The Yardbirds: The Seekers would go on to outsell them all in 1966! Then followed a breakthrough performance in June on The Ed Sullivan Show – the first time any Australian musicians had appeared on US television.

The Seekers during their first performance on the Ed Sullivan Show in 1965


The Seekers' amazing success was repeated in 1966, commencing with a sell-out concert tour of Australia, during which they filmed their first Australian TV special, “At Home with the Seekers”. There was also a successful collaboration with Paul Simon (of Simon & Garfunkel fame), which produced “Someday, One Day”, another major hit. Bruce Woodley then co-wrote several songs with Mr. Simon, including “Red Rubber Ball”, released on The Seekers 1966 UK Top 10 album “Come the Day”.

In November, The Seekers appeared on the bill at the prestigious Royal Command Performance concert at the London Palladium, before H.M. Queen Elizabeth, the Queen Mother. Finally, in December, the group released what became their biggest hit, and highest charting American release.

“Georgy Girl”, the title song for the film of the same name, reached Number 3 in the UK, Number 1 in Australia, and Number 1 on the US Cashbox Top 100 in February 1967, ultimately selling 3.5 million copies worldwide. Jim Dale and Tom Springfield, the song’s writers, were nominated for the 1967 Academy Award for Best Original Song of 1966, although The Seekers had to pass up the opportunity to perform at the awards ceremony due to a prior booking in the UK. Unfortunately for them, the Oscar was won by the title song of the film Born Free.

The Seekers at the Myer Music Bowl, a publicity shot for "The Seekers Down Under"




While touring Australia in March last year, The Seekers appeared at a concert at the Sidney Myer Music Bowl in Melbourne, which is claimed to have drawn an audience of 200,000 – the largest concert audience ever in the southern hemisphere according to the Guinness Book of Records. (Though rumour has it that the audience figure is somewhat exaggerated, because visitors to the annual Moomba festival occurring in the vicinity were also counted!). During their 20-minute performance, the group was accompanied by the Australian Symphony Orchestra, conducted by Hector Crawford, also a producer of radio, film and television. Film of this performance was included in The Seekers’ second Australian TV special, “The Seekers Down Under,” which drew a record audience of over 6 million!

A scene from "The Seekers Down Under", showing the group in Canberra

By this time Miss Durham apparently felt the need to branch out on a musical career of her own, and recorded a debut solo single, "The Olive Tree", which was released in June last year, while The Seekers were on a North American tour. For The Seekers as a group, the hits just kept on coming, for both their single releases and their most recent album, “The Seekers Seen in Green”. But when Judith Durham’s second solo single, “Again and Again”, appeared at the end of last year, it sparked early rumours that the group might split up.

During their North American tour, The Seekers joined fellow Aussie performers Rolf Harris, Normie Rowe and Bobby Limb in the special “Australia Day at Expo 67” concert in Montreal, that became the first official satellite broadcast into Australia. They also made another appearance on The Ed Sullivan Show, singing “Georgy Girl”, which has turned out to be their last US hit.

The Seekers performing at the Australia Day concert broadcast via satellite to Australia from Expo 67

Our Last Goodbye
Though we didn’t know it at the time, when The Seekers returned to Australia last December, it was to be their final Australasian tour. But in a fitting finale to their career, The Seekers’ rapid rise to international fame was crowned with Australia’s highest honour: in January, they were collectively named “Australians of the Year for 1967”. This was the first time that a group, rather than an individual, has received this prestigious national recognition.


The Seekers with Australian Prime Minister John Gorton and his wife after receiving the "Australians of the Year" award.

During this tour, they also filmed their final Australian TV special, “The World of the Seekers”. Filmed in colour for international distribution, the programme was first screened in cinemas (so we could see it in colour, lacking colour television in this country) before being broadcast nationally to outstanding ratings.

At some point during the tour, Miss Durham informed her band mates that she intended to leave The Seekers in the middle of the year, although the swirling rumours of their impending break-up were consistently denied and laughed off, even a few weeks before the split was announced.

Despite knowing that their days of performing together were coming to a close, The Seekers recorded a final single, “Days of My Life”, in April, which sadly has proved less than successful. A final UK album, “Live at The Talk of the Town” has also been recorded and will be released later this year. A compilation album, “The Seekers — Greatest Hits” has just been released here in Australia (quick work by the record company, that one!).

When The Seekers publicly announced in the UK on Wednesday 3 July that they were breaking up, they insisted that they had never intended to go on performing indefinitely. “It’s getting far too complicated, and should be run as a cold hard business, which means it has now reached a stage we never wanted it to,” they said in a group statement. “It is time for us to part. We are all at a stage where we should be growing up as individuals, not as a group”. This rather suggests that Miss Durham was not alone in her desire to branch out into a solo career, and her decision to depart simply accelerated something that was already in train.

The Seekers made their last appearance together in a 50 minute television special on 9 July, rapidly arranged by the BBC. “Farewell The Seekers”, which has not yet been screened in Australia, was reportedly an emotional experience on screen and off, attracting an audience of more than 10 million viewers. When the lights went down, the carnival was over, and an amazing chapter in Australia’s musical history had drawn to a close. I wonder what will come next for the former Seekers?

No comments Leave A Comment
Science / Space Race

[July 16, 1968] Hitching a Ride to Orbit (Orbiting Vehicle Satellite Series)

1 Comment


by Kaye Dee

The continuing hiatus in American and Soviet manned spaceflight and the present lack of unmanned lunar and interplanetary missions, has been a blessing as well as a disappointment. It's given us an opportunity to focus on some lesser-known US and USSR space programmes that are quietly going about their business largely unreported. One such is the US Air Force’s Orbiting Vehicle programme, which saw its most recent launch just a few days ago. While the Traveller has previously taken a look at some early OV1 series missions, the whole thing is worth looking at–it's really quite exciting!

Hitching a Ride on an ICBM
When the Air Force Office of Aerospace Research (OAR) was looking for a means to conduct space experiments at the lowest possible cost, it conceived the idea of using small satellites of a standardised design, launched as secondary payloads piggybacking on Atlas ICBMs being flown for missile technology development. After all, Atlas vehicles have been used to launch satellites as far back as 1958 (Project SCORE), as well as launching all the orbital missions of NASA’s Mercury programme.

This concept led to the development of Orbiting Vehicle (OV) programme, initially created in the early 1960s under the name SATAR (SATellite for Atmospheric Research). SATAR was an extension of the "Scientific Passenger Pods" (SPP) flown as external payloads on suborbital Atlas missile tests to conduct scientific experiments during their brief time in space. In its original form, SATAR was to use a larger version of the SPP, called the Atlas Retained Structure (ARS), that would carry a small satellite with its own propulsion system. When the Atlas missile reached its apogee, the satellite would be deployed from the ARS, using its propulsion system for orbital insertion.

Renamed the Orbiting Vehicle programme around 1963, this project now includes five separate series of standardised satellites, designated OV1 through OV5, each designed for a specific research goal.

OV1-3 launches in a side pod on an Atlas missile ABRES test flight

Launching OV1
The first series of OV satellites – which has seen the greatest number of launches to date – is OV1, developed by the Convair Division of General Dynamics, which also produces the Atlas vehicle. Initially, OV1 satellites were going to be launched on Atlas missiles testing nosecones for the Advanced Ballistic Re-Entry System (ABRES). However, only OV1-1 and OV1-3 ever flew piggyback on an ABRES mission, mounted in pods on the side of the missile. Both satellites were, unfortunately, unsuccessful.

View of the OV1-2 launch showing the twin top-mounted pods. Although there were two pods, only a single satellite was launched on this flight

The other OV1 missions so far have been launched on dedicated Atlas D and F boosters (retired from the ICBM programme) purchased by the OAR for the OV1 series. These flights use two modified SPP pods mounted side-by-side on top of the Atlas, enabling two satellites to be launched on each OV1 flight. The only exceptions to date have been OV1-6, which flew on the Manned Orbiting Laboratory test flight on 2 November 1966, and OV1-86, carried in a side-mounted pod on the same launch that lofted OV1-11 and OV1-12.

Small but Versatile
Using a standardised satellite design has enabled experiments to move rapidly from proposal to launch, the process taking just fifteen months on average. The operational design of the multi-purpose OV1 spacecraft is a cylinder 4 ft 6.6 in long and 2 ft 3 in in diameter, with a cap on both ends covered with 5000 solar cells producing 22 Watts of power. The satellite is attached to a discardable propulsion module using an Altair 2 solid-fuelled motor for orbital insertion. It has two 1 ft 6 in antennae for command and telemetry, with attitude control provided by hydrogen peroxide thrusters. The use of a Sun sensor to determine the spacecraft's orientation to the Sun commenced with OV1-7, while OV1-13 and OV1-14 introduced advanced digital telemetry, which has improved the data return from the satellites. OV1-1 undergoing a balance test prior to launch

Since the launch of OV1-1, on 21 January(GMT) 1965, 17 OV1 series satellites have so far been launched, with more apparently on the way. Only five have failed in some way. The basic purpose of this series is research into fundamental properties of the upper atmosphere and the space environment. This has meant that, unlike the experiments and results from most USAF satellites (and other OV series), which remain classified, the details of OV1 experiments have been published. But will we ever find out how closely the OV1 missions are related to the classified programs?

OV1 Highlights
Notable missions of the OV1 series so far have included OV1-4, launched 30 March (GMT) 1966, which carried three Tissue Equivalent Ionization Chambers, similar to one flown on Gemini 4, NASA’s first spacewalk mission. This data has helped to quantify the radiation hazard that astronauts face on long-duration missions in orbit.

OV1-6, launched on a Titan IIIC with the Manned Orbiting Laboratory test flight in November 1966, uniquely carried several inflatable balloons. Once ejected into orbit, they served as optical targets for ground-based observations, apparently to determine the value of inflatable decoys in confusing anti-missile systems.

PasComSat , or OV1-8, was launched on 14 July (GMT) 1966 and used for passive communications tests, designed to compare the advantages of a grid-sphere satellite against a balloon similar to the Echo series. Its non-standard design comprised a 30ft diameter open spherical grid of soft aluminium wires embedded in an inflatable plastic balloon. The entire satellite, with its unique propulsion module, weighed just 23lb. The satellite’s structure was also intended to demonstrate the feasibility of erecting an open grid structure in space, as the polybutyl methacrylate plastic of the balloon was designed to break down after a few days under the sun's strong ultraviolet rays, leaving the open aluminium structure in orbit. Tests indicate that the grid-satellite will remain in orbit for at least 11 years and have measured its reflective power as five times greater than that of a solid sphere.

OV1-9, launched in December 1966, carried a number of radiation experiments and was still aloft in late May 1967, during an intense period of solar and magnetic activity. Its data proved the existence of the Earth's electric field, which had long been theorised. OV1-10, OV1-9’s launch twin, returned the most comprehensive set of solar X-ray observations to date and also carried a cosmic ray telescope.

A unique “triple launch” took place on 27 July (GMT) 1967, with OV1-86 flying in a side-mounted pod and OV1-11 and OV1-12 positioned on top of the Atlas D launch vehicle. OV1-86 was an opportunistic mission composed of the unused satellite body originally intended as OV1-8, coupled with the unused OV1-6 propulsion module, which was not required for its Titan IIIC launch. The satellite carried a cosmic ray telescope, as well as equipment measuring the temperature radiation properties of different types of Earth terrain, mapping the Earth in the near-infrared spectrum. Although OV1-11 failed to orbit, OV1-12 carried the Flare Activated Radio-biological Observatory, equipped with a suite of eleven experiments to study the radiation hazard from solar flares.

The first Atlas F launch of the OV1 series placed OV1-13 and OV1-14 in orbit on 6 April (GMT) 1968. Both satellites were designed to focus on measuring radiation in space, although OV-14 ceased operating after one week in service. OV1-13 recently measured increases in the energy and intensity of electrons during a geomagnetic storm that took place 10 June 1968, and it is hoped that its data will shed light on how the particle flow caused by solar storms creates these high altitude increases. OV1-14


Spades and Cannonballs
The most recent OV1 launch took place on 11 July, carrying both a standard satellite and the second non-standard spacecraft in this series. OV1-15 has a suite of experiments developed by The Aerospace Corporation designed to study the response of the upper atmosphere to solar and magnetospheric disturbances. It is hoped that the Solar Perturbation of Atmospheric Density Experiments Satellite (SPADES) group of complementary experiments will help to identify the cause of large and sudden fluctuations encountered in satellite trajectories, he ultimate goal being an ability to predict these fluctuations and their magnitude. OV1-16 is another non-standard satellite, also known as LOADS (LOw Altitude Density Satellite) and Cannon Ball. This unique satellite is designed to have a large a mass/area ratio, so that they can remain in orbit at lower altitudes than conventional satellite, enabling measurements of the atmospheric properties at around 65-90miles altitude. This lower thermosphere region is a largely unknown part of the atmosphere. Cannon Ball lives up to its nickname, as a sphere with a diameter of only 24 inches, although its total weight is 600 lb, largely due to a 1.5 inch thick shell of brass! Concerns about heating by sunlight and atmospheric heating caused by orbiting at low altitude meant that the satellite body has been painted black (to increase radiation) with some gold-plated circular areas. If this experiment goes well, there may be further OV satellites of this type.

Unlucky So Far!
The OV2 series could be considered the “unluckiest” of the Orbiting Vehicle projects to date. Out of four flights, two have failed and two were canceled! The series was originally devised within the ARENTS (Advanced Research Environmental Test Satellite) programme, with the satellites intended to complement the Vela programme, monitoring for violations of the 1963 Partial Test Ban Treaty. However, with the cancellation of ARENTS, OV2 became something of an “orphan” series, its initial three satellites each tasked with quite different research.

OV2-1 shortly before launch, with its experiment package labelled

OV2-1, launched 15 October (GMT) 1965, was intended to monitor the biological hazards of near Earth charged particles, but failed to separate from its launcher. OV2-2, planned to conduct optical measurements from orbit, was cancelled, as was the OV2-4 satellite, added to the programme and designed to observe radiation from trans-lunar orbit. OV2-3, intended to undertake radiation studies, failed when contact was lost after launch on 21 December (GMT) 1965. A fifth OV2 satellite has been authorised and is due for launch later this year to conduct astronomical research and radiation studies. Produced by Northrop and launched on Titan III test flights, the spin-stabilised OV2 satellites had cubic bodies made of aluminium honeycomb, approximately 2ft on a side. Attached to each of the four upper corners of the satellite are 7ft 6in paddle-like solar panels each carrying 20,160 solar cells, although the satellites also have Nickel-Cadmium to operate while in the Earth’s shadow.

Taking a Scout
In a departure from the earlier series, OV3 satellites have all been launched on Scout boosters, used with many civilian satellite programmes, such as the Explorer series. OV3-1 to OV3-4 were built by the Space General Corporation (part of Aerojet), while OV3-5 and 6 were constructed by the Air Force Cambridge Research Laboratory (AFCRL), which also managed the entire series.

Octagonal prisms in shape, the first four OV3 satellites were 2ft 5in in length and the same dimensions wide, with their experiments carried on long booms. With a design life-span of one year, the satellites were covered with 2560 solar cells. OV3-5 and OV3-6 were a little smaller than their predecessors, being only 1ft 9in in length.

The initial group of OV3-1 to 4 were devoted to radiation studies and launched across 1966. OV3-2 made important charged particle observations in conjunction with the 12 November 1966 South American solar eclipse that was also observed by Gemini 12. Other observations and auroral research were also co-ordinated with airborne observations by AFCRL KC-135 aircraft and sounding rocket flights by the National Research Council of Canada.

VLF receiver data from OV3-3 determined the location of the plasmapause (the outer boundary of the Earth's inner magnetosphere), while the satellite also carried out radiation studies using the same suite of instruments as the failed OV2-1. OV3-4 data contributed to the refinement of theoretical models of astronaut radiation dosage.

The final two OV3 missions, in 1967, were focussed on ionospheric research. While OV3-5 failed to achieve orbit, OV3-6, launched 5 December (GMT) 1967 was quite successful. Also known as Atmospheric Composition Satellite (ATCOS)-2, its data is being used to create more accurate atmospheric models.

Despite keeping costs low by using off-the-shelf components, the OV3 programme was phased out after OV3-6, in favour of the cheaper OV1 programme.

Whispering Galleries
Just as particular physical conditions create the “whispering gallery” phenomenon under the dome of a building, the OV4 series satellites was initially created to investigate long range radio propagation in the charged atmosphere of the ionosphere. Each OV4 launch was intended to consist of a pair of satellites, one being the transmitting spacecraft, the other a receiver. However, only the OV4-1 mission was flown in this way with the OV4-2 pair cancelled. OV4-1R and OV4-1T shortly before launch

The OV4-1 satellite pair were both cylindrical, 1ft 5in in diameter, with domed upper ends. 2ft 11in long, they were powered by silver oxide/zinc batteries which gave them a 50-day lifespan.

Launched on a Manned Orbiting Laboratory (MOL) test flight on 3 November (GMT) 1966, OV4-1T carried a transmitter broadcasting on three frequencies in the 20-50 MHz range. To maximise its orbital separation from the OV4-1R receiver satellite, OV4-1T incorporated a small rocket motor. The two satellites were launched into slightly different 190-mile orbits, allowing them to test “whispering gallery” communications over a range of distances. This enabled the OV4-1 satellites to evaluate using the ionosphere's F layer as way to facilitate HF and VHF transmissions between satellites not in line of sight of each other.

Apart from being designated as part of the OV4 series, OV4-3 launched on the same Titan III flight as the OV4-1 pair, was a quite different spacecraft, being the boiler plate model of the Manned Orbiting Laboratory. The reconditioned Gemini 2 (originally flown on a sub-orbital flight on 19 January 1965), was attached to the MOL model. Little Stars
The most recent of the Orbiting Vehicle programme to date, with the smallest satellites, the OV5 series is a continuation of the Air Force's earlier Environmental Research Satellite (ERS) series. OV5 satellites are upgraded versions of the original ERS satellites developed by Space Technology Laboratories (part of TRW Inc), modified with a command receiver, allowing instructions to be sent from the ground, and advanced digital telemetry.
Spin-stabilized, for improved communications and solar power reliability, OV5 series satellites are tetrahedral in shape and made of aluminium struts. Just under 1ft in width, each satellite carries 816 solar cells distributed over its eight triangular faces. Power is stored in a nickel–cadmium battery and experiments are mounted on the vertices of the tetrahedron.

Passive thermal control keeps the inside of the spacecraft at around 59 °F, and an on-board timer is designed to shut off each satellite after 18 months of operation. Telemetry is broadcast on frequencies compatible with NASA Spacecraft Tracking and Data Acquisition Network (STADAN) stations, enabling the satellite data to be received at multiple locations.

The first two OV5 satellites, OV5-1 and OV5-3 were launched on 28 April (GMT) 1967 on a Titan IIIC vehicle. OV5-1, also known as ERS 27 is an X-ray measuring microsatellite associated with the US Air Force's “space weather” prediction programme. OV5-3, also known as ERS 28, is a materials science research project, carrying a variety of metal samples and Teflon, to investigate how they are affected by long-term exposure to the space environment. OV5-2, another materials science research experiment, is due to be launched later this year.

While the Orbiting Vehicle programme has developed somewhat differently from the original concept, insofar as it has largely transitioned away from hitchhiking on various test launches, the OV1, 3 and 5 series satellites have demonstrated the value of using standardised designs as a means for cheap and relatively rapid development and launch of space research instruments. The OV1 and OV5 programmes look set to continue for some years to come and will hopefully contribute further significant data towards our understanding of the space environment.

So, here's to "micro" satellites–perhaps they presage the future of cheap space development!

1 Comment Leave A Comment
Science / Space Race

[June 28, 1968] Classified Communications (IDCSP Satellite Constellation)

Leave a comment


by Kaye Dee

An advantage of previously working for the Weapons Research Establishment in South Australia is that I am still able to get information (of the unclassified variety, of course) about defence space programmes from my former colleagues. This is particularly helpful when I’m writing about space projects that are not getting a large amount of press coverage here in Australia.


One such project is the Initial Defence Communication Satellite Programme (IDCSP), the United States’ first global military communications network. The most recent IDCSP launch took place on 13 June with the launch of eight satellites on a Titan IIIC rocket, bringing the total number of satellites in the constellation to 27.

The Advent of Defence Satellite Communications
The very first experimental communications satellites were created by the U.S. armed forces. Project SCORE was jointly developed by the U.S. Air Force and communications company RCA, while the first active repeater comsat, Courier 1-B, was developed by the U.S. Army Signal Corps. I think we can be sure that these early satellites satisfactorily carried out classified experiments in secure defence communications, as the first planned military satellite communications network, Project ADVENT, commenced development in February 1960.

Diagram of the proposed ADVENT satellite in orbit

ADVENT intended to place several large, three-axis stabilised, heavy satellites in geosynchronous orbit (with one of its ground stations planned to be located in the Australian Trust Territory of Papua New Guinea). However, this extremely ambitious programme soon fell behind schedule and saw costs balloon out to twice the original estimates, leading to its cancellation in 1962. It’s perhaps not surprising that the ADVENT programme faced difficulties in developing its satellites – even six years later, an operational three-axis stabilised satellite has yet to become reality.

The engineering test vehicle for the ADVENT satellites under construction

Enter IDCSP
Following ADVENT’s cancellation, the U.S. Air Force embarked on a new satellite communications system as a replacement. Originally called the Interim Defence Communications Satellite Programme, it has since been renamed as the Initial Defence Communications Satellite Programme. IDCSP is intended to be the first stage in the longer-term Defence Communications Satellite Program (DCSP), which is being managed by the Defence Communications Agency.

Commenced in 1962, the IDCSP is designed to be significantly cheaper than ADVENT by using a constellation of small, much simpler satellites. The original plan was for a constellation of 24-30 satellites, placed into Medium Earth Orbit using ten Atlas Agena rockets. In October 1963, the programme was placed on hold while the Pentagon investigated renting satellite communications capability through the INTELSAT system, but this idea was abandoned in mid-1964 and Air Force resumed work on the IDCSP.

Doing the Heavy Lifting
As it happened, the delay worked to the IDCSP’s advantage. By 1964, the development of the U.S.A.F.’s heavy-lift Titan IIIC offered the possibility of lofting up to eight satellites per launch. This has meant that the total number of launches required to establish the constellation, and thus the overall cost of the programme, has been greatly reduced. It seems that the Pentagon decided to negotiate “free rides” on early Titan IIIC development launches, although this earned some censure from Congress for risking the success of the programme with launches on an unproven vehicle just to keep costs down! Fortunately, it has been a risk that has largely paid off.

The Air Force decided to develop the Titan III family so that it would have a heavy launch capability independent of NASA’s Saturn rockets. The Titan III vehicles are derived from the Titan II I.C.B.M., that was also the basis of the Titan launch vehicle used for NASA’s Gemini programme. The core of the Titan IIIC is a modified two-stage Titan II, structurally strengthened to accommodate heavier payloads and additional stages. The launcher has two strap-on solid rocket boosters and an additional upper stage with engines that can be restarted, known as the Transtage.

The 25 ft long Transtage uses a pair of Aerojet AJ10-138 engines that are similar in design to the larger engine that Aerojet is developing for the Apollo Service Module. These engines enable the Transtage to put heavier payloads into much higher orbits than the Atlas Agena rocket originally selected for IDCSP. This means that it can place as many as eight IDCSP satellites at a time into sub-synchronous orbits (more on that below) of around 21,000 miles.

The complex requirements for the preparation and launch of a Titan III and its payloads has necessitated the construction of a totally new facility at Cape Kennedy, with three pads, designated Launch Complexes 40, 41 and 42 (this last not yet built). There is also a new Vertical Integration Building (VIB), which can support the simultaneous assembly of up to four Titan III core vehicles. It also contains the Titan III launch control centre.

Keep it Simple
The IDCSP satellites have been designed to avoid the development delays that come from being too technologically ambitious – the kind that sealed the fate of ADVENT. Every satellite in the constellation is an identical spin-stabilized, 26-sided polygon, 34in in diameter. The 100lb satellites are covered with solar cells and have been deliberately kept technologically very simple: they have no back-up batteries or on-orbit command systems. Without command systems, they are virtually “jam-proof” and cannot be moved off orbit by false commands sent by an enemy.

Each satellite has a single 3.5W X-band transponder with a 26 MHz bandwidth. It can handle 600 voice channels or 6000 teletype signals. While the designers have planned for these initial satellites to be operational for three years, they are equipped with an automatic “kill switch”, which is intended to deactivate them after six years in orbit, so that they will not produce any signals that would interfere with more advanced future replacement satellites.

As the small satellite’s transponders are low powered and use a low-gain antenna, the present ground stations are comparatively large, but there are plans for future, smaller mobile ground stations.

“Sprinkled Across the Sky”
One of the few local newspaper articles that I saw about the launch of the first batch of IDCSP satellites described them rather poetically as being “sprinkled across the sky” when they were first released into orbit from the Titan IIIC Transtage. Six hours after launch, the deployment truss on which the IDCSP satellites are mounted enables the satellites to be dispersed one-by-one into orbit, over about 3 minutes. As they are released, the satellites drift apart as they move into orbit.

Because they are not quite in geosynchronous orbit (orbiting at the same speed the Earth rotates, which would "fix" them in the sky), the satellites drift randomly at approximately 28° per day, over time forming a ring of satellites approximately evenly spaced above the Earth's equator. This sub-synchronous orbit has the advantage that the failure of one satellite would not leave a major gap in coverage; at least one other satellite of the constellation would always be visible to an Earth station if one failed. 12 satellites were considered the minimum necessary to provide full coverage, so the current constellation has plenty of redundancy even if several satellites fail. The daily movement of the satellites makes them difficult to track, which also helps to make them more secure against enemy interference.


What are they for? Ssshhh, it’s Secret!
The IDCSP constellation is designed to provide the U.S. military with swift, jam-resistant radio links to its forces in South Vietnam and elsewhere around the world in times of crisis. The satellites enable 24 hour-a-day contact between the Defence Department in Washington and forces in the field. While the IDCSP programme is publicly acknowledged, the satellites are reserved for secret and sensitive command-and-control communications. Routine administrative and logistical messages are relayed by INTELSAT satellites.

IDCSP ground terminals have been installed at American bases at Saigon and Nha Trang, and rumour has it that there have already been experiments with sending high-resolution photographs from Saigon to the Pentagon via satellite, enabling rapid battlefield analysis. In addition to the two ground stations in South Vietnam, there are six other IDCSP ground stations, including in the U.S. and Britain.

Building the IDCSP Satellite Network
The first batch of seven IDCSP satellites was launched from Florida on 16 June 1966, as the payload of the fourth Titan IIIC. In addition to the communication satellites, an eighth satellite, structurally based on the IDCSP satellites and designed to test an experimental gravity gradient stabilisation technique, was also flown. Communications tests were carried out between ground stations in New Jersey, California, England and Germany.

Unfortunately, the second set of eight IDCSP satellites was lost on 26 August 1966 due to the failure of the fifth Titan IIIC’s payload fairing. A replacement set of eight satellites was sent into orbit on the seventh Titan IIIC, on 18 January 1967, followed on 1 July by a further four IDCSP satellites. IDCSP 19 was another experimental satellite, also known as DATS (Despun Antenna Test Satellite), designed to test a more efficient electronically despun antenna platform.

The most recent launch, on 13 June, has come almost exactly two years after the first satellites in the network were put into orbit. Its eight satellites are the final ones to be added to the system, which is now considered to be “operational”, rather than “experimental”.

Britain Follows Suit
Britain has taken an interest in the operation and performance of the IDCSP satellites, as it intends to launch its own military communications satellite soon, to provide military communications across the British Commonwealth. Skynet has been in planning since 1962, with the U.K. deciding on an initial satellite in geostationary orbit over the Indian Ocean, to support force deployments east of Suez. Skynet is considered to be more advanced than IDCSP, as it will have a transponder with two channels, allowing communications between two types of ground station.

Model of a Skynet 1 satellite

Britain was invited to participate in IDCSP in 1965, and the Marconi company built a ground station at its facility in Christchurch, Hampshire, to conduct experiments with the first batch of IDCSP satellites when the U.S. was not using them. Nine ground stations have been planned for Skynet, which are also able to communicate with the IDCSP satellites. These stations will be able to send secret military communications to a large number of locations within the British Commonwealth.

The U.S. Philco Ford company, which developed the original IDCSP design, was contracted to build the first-generation Skynet 1 satellites (of which there will be two). The Marconi company is assisting with this work so that the U.K. will develop the expertise needed to build the Skynet 2 series satellites. Unlike the IDCSP constellation, Skynet satellites will have an on-board manoeuvring system so that they can be kept on station, or moved from one location or another.

With the United States and Britain developing defence communications satellite systems, it's virtually certain the USSR will be doing the same – if it does not have an operational network already (perhaps some of those mysterious Kosmos satellites whose purpose in orbit is unknown?) Since reliable communications are vital to any military operation, it's not hard to imagine that defence comsats like IDCSP and Skynet could become the first casualties in any future superpower conflict…








No comments Leave A Comment
Science / Space Race

[MAY 26, 1968] EUROPA AD ASTRA (EUROPEAN SPACE UPDATE)

Leave a comment


by Kaye Dee

The recent launch of the ESRO 2B scientific satellite on 17 May (more on that below) reminds me that it has been a while since I wrote anything about the European launcher development programme being carried out in Australia. There have also been major developments in Europe’s space plans over the past few months, which look like they will significantly change the future of the European space programme.

For readers in the United States and other parts of the world, who may not be familiar with the European space programme, let me take a few moments to introduce the major players and provide a bit of background before talking about recent developments.

Cousins Rather Than Siblings: ELDO, ESRO and CETS
The two most important space bodies in Europe are the European Space Research Organisation (ESRO) and the European Launcher Development Organisation (ELDO). ESRO’s focus is on developing scientific satellites for space research. ELDO looks to develop an independent satellite launch capability for Europe through the Europa rocket, conducting its test flights from the Woomera Rocket Range in Australia.

The French acronym CERS stands for Conseil Européen de Recherche Spatiale

These roles would appear to be complementary, and I have occasionally referred to ELDO and ESRO as “sister” institutions in previous articles, since they have grown up in parallel and have several member states in common. However, I’ve come to think that they are perhaps best considered as “cousins”, as they operate and forward plan quite separately from each other, resulting in a lack of co-ordination across Europe's space activities. While ELDO was established with an assumption that ESRO would be one of the customers for its launch services, ESRO has not waited for a European launcher to become available from ELDO: ESRO 2B has been launched under NASA’s auspices on a Scout vehicle from Vandenberg Air Force Base and for the foreseeable future all planned ESRO satellite launches will be on US rockets.

The French acronym CECLES stands for Conseil européen pour la construction de lanceurs d'engins spatiaux

Mention also needs to be made of the European Conference on Telecommunications by Satellites (CETS), the third space organisation in Europe, which is playing a role in pushing for some of the proposed changes in Europe’s space plans. Unlike ESRO and ELDO, CETS is not active in developing space technologies and vehicles, but provides a forum for European Post, Telegraph and Telecommunications agencies (PTTs) to consider the role of communication satellites and discuss the European role in the INTELSAT global telecommunications satellite system.

ESRO and ELDO: Parallel Lives
Stemming from initiatives taken in 1959 and 1960 by a small group of scientists, led by Italian Prof. Edoardo Amaldi and French physicist Prof. Pierre Victor Auger, ESRO was set up in the early 1960s. Like ELDO, it formally came into existence in 1964. ESRO’s member countries are Belgium, Denmark, West Germany, France, Italy, the Netherlands, Sweden, Spain, Switzerland, and Britain, and the organisation’s focus has been on strictly civil scientific research. Four ESRO members (Britain, France, Italy and West Germany) also have their own national space programmes.

ESRO has already developed a number of technical facilities: the European Space Research and Technology Centre (ESTEC) in the Netherlands, is the newest, opened on 3 April. ESRO has also begun to establish its own space tracking network, ESTRACK, and has its own sounding rocket launch facility, ESRANGE (established in 1964), near Kiruna, Sweden.

The opening of ESTEC on 3 April by HRH Princess Beatrix and her husband Prince Claus included the royal couple being presented with a model of the ESRO 2B satellite

ELDO, on the other hand, was very much a British initiative in 1960-61, seeking partners in Europe for the development of an independent satellite launcher that would use as its first stage the UK’s then-recently cancelled Blue Streak missile. ELDO’s member states are Britain, France, West Germany, Italy, Belgium and the Netherlands. Australia, despite being a non-European country, is also an ELDO member because of its role providing the test launch facilities at Woomera.

The first Blue Streak launch from Woomera in 1964, designated as ELDO F-1, the inaugural test flight of the Europa rocket's first stage

Both organisations operate with a policy of “juste retour” – allocating work to industry in member countries in proportion to their share of financial contribution to the organisation.

So you can see that, unlike the US civilian space programme, under the control of NASA, and the Soviet programme, under central control from the Politburo, there are many fingers in the European space pie, with many complementary and yet competing interests and national agendas.

Not Going Up from Down Under
When I last reported on the ELDO programme, it was to cover the loss of the ELDO F-6 launch in August last year. At the time, I mentioned that a reflight – designated as F-6/2 – was already in planning. Scheduled for December 5, 1967, the first attempt to launch F-6/2 was aborted just 12 seconds before lift-off due to a power failure.



Although successfully launched at 6 a.m. the following morning, the second stage failed to ignite after separation from the first stage. The vehicle then crashed down into the upper reaches of the Simpson Desert, repeating the failure of Europa F-6/1. This was the second failure of an active French Coralie second stage, and an investigation is still underway to determine the cause.

Despite this failure, the next Europa launch – designated F-7 – is still planned for October or November this year as the first test flight with three active stages. Let’s hope that the issues with the second stage have been resolved by then!

Has Britain Lost Its Way in Space?
Since coming to power in the October 1964, the Wilson Labour Government has shown itself to be considerably less enthusiastic about European space activities than its Conservative predecessor. This would appear to be in large part due to the struggling UK economy, but also a response to the lack of success of Britain’s attempts to join the European Economic Community in 1963 and 67, for which UK participation in European space was supposed to be a sweetener.

In 1965, when the cost of completing the original ELDO programme had already climbed to twice the early estimates, France began to call for a revised – and more expensive – programme to develop the Europa vehicle into a launcher capable of placing satellites into geostationary orbit. Calling the Europa I launcher “obsolete”, as it can only place satellites into polar orbit, France has proposed a more sophisticated and powerful Europa II vehicle that would enable Europe to launch communications and other applications satellites without reliance on the United States (which has already given indications that it will take measures to protect its monopoly on the use of geostationary satellites).

Applications satellites, especially for international communications (as demonstrated by INTELSAT), are almost certainly the way of the future in space developments outside human spaceflight, and West Germany, Belgium and the Netherlands have agreed with the French view. This resulted in a July 1966 proposal to complete ELDO’s Europa I programme and add a Europa II development programme.

The British Government, however, began to express severe doubts about the “technological use and the economic viability” of the ELDO programme and opposed the French-led changes. In 1966, it signalled that Britain would not participate in any further financing of ELDO programmes after present projects were completed. Britain also reduced its financial contributions to ELDO from 38.79% (the largest contribution to ELDO’s budget) to 27%, with the difference being made up by the other four paying members (Australia being a non-paying member, on the basis of providing the Woomera facilities).

The reduction in the British financial clout within ELDO, and the desire for an equatorial launch facility, has been a factor in ELDO planning to move away from Woomera to France’s national launch facility in Kourou, French Guiana, at the completion of the ELDO I programme, anticipated in 1970. This has greatly disappointed my friends at the WRE, who spent considerable effort in preparing plans for a launch facility near Darwin, in the Northern Territory, to support an equatorial launch capability in Australia for the Europa II programme.

The first launch from France's Kourou facility, the future home of the ELDO programme, took place on 9 April this year, with the firing of a Veronique sounding rocket

British Space Industry Weighs In!
In November last year, a report from the National Industrial Space Committee, which represents the space interests of British industry, recommended that the British Government should not reduce, but expand its spending on space research and development, in order to stop the brain drain from the UK and obtain a share in what is already being seen as the lucrative space technology business. It recommended that spending on space-related R&D should be increased by around a 25% increase from the present $A60 million to between $A75 million and $A87.5 million said the committee. Comments at the time from Mr Kenneth Gatland, vice president of the British Interplanetary Society, indicated that a major row was looming between industry and Government over Britain's failure to lead Europe into the commercial field of communication satellites. Although the Post Office, which controls British telecommunications, has expressed “severe doubts” about the commercial benefits of space-communication, this seems a bit strange when the Post Office is also the British signatory to INTELSAT, and the UK is the consortium’s second largest shareholder. “Government advisers”, Mr. Gatland said, “were being accused of leaving Britain high and dry through inept policies, allowing France and West Germany to benefit at Britain's expense.” Instead of the “national scandal” of Britain having spent an estimated $A124,707,500 on ELDO without any tangible end project in view, Mr. Gatland has suggested that Britain should give ELDO a target which would bring a return for the large capital investment.

A European Symphonie?
Whatever Britain’s misgivings regarding satellite communications, France and Germany are eager to move into the field of communications satellites to break INTELSAT’s monopoly on international satellite telecommunications. They have embarked on their own joint communications satellite project, known as Symphonie. As this project has taken options on two Europa II launches for its two satellites, it is, at present, ELDO's only customers! Mr Gatland has urged Britain to join France and Germany in the Symphonie project, which will promise a satellite in three to five years.

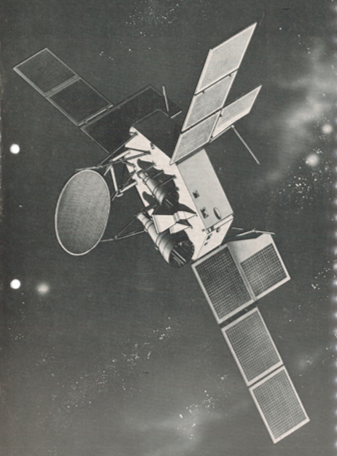

An early design for the Symphonie communications satellite, which is intended to be three-axis stabilised

Italy has decided to go it alone on the development of a telecommunications satellite known as Project Sirio. The design will apparently be based on the experimental telecommunications satellite that Italy was originally going to develop for ELDO, before that aspect of the programme was cut to reduce overall costs.

ESRO is also reported to be interested in moving beyond scientific satellites into the applications satellite area, in conjunction with CETS, which has expressed interest in the development of a satellite for television distribution.

Whither or Wither, Europe?
With all this history in mind, Europe’s space plans for the future have undergone considerable change in the past few months. According to a report released in March, Europe's space club has mapped out an ambitious programme for the next 10 years that would include telecommunications satellites for television, broadcasting and telephone calls, meteorological, air traffic control and Earth resources satellites, and large numbers of astronomical and other scientific satellites. This programme, which involves a 10 per cent annual increase of expenditure on European space projects, is intended to be discussed when Science Ministers from the 17 member states of ELDO, ESRO and CETS, meet in Bonn, West Germany, in June.

However, the ambitious proposals released in March evolving as originally anticipated is now unlikely, given the most recent events. On 18 April, Britain's Labour Government announced cuts in spending on space research and cast further doubts on the future of ELDO. Although the Government indicated that it would maintain its contribution to the current ELDO programme at the existing level, it could “see no economic justification for undertaking further financial commitments to ELDO after the present programme,” which is due to conclude in 1970.

This (not totally unexpected news) was followed by an announcement from ESRO on 26 April that it was cancelling its plans for its two largest satellites scientific satellites – a major blow for European space co-operation. The two massive TD 1 and TD 2 satellites (the TD stands for Thor Delta, the intended launch vehicle), each weighing 990 lbs, were to have been built under a 100 million franc (about Aus$17,800,000) contract by an international consortium including Hawker Siddeley Dynamics of Britain, the French firm Matra, the West German group ERNO, and Saab of Sweden.

TD1, scheduled for launch in 1970, was designed to study the relationship between earth and sun. TD2, planned for launch the following year, was focused on research into solar ultra-violet radiation and electromagnetic phenomena in the upper atmosphere. The reason for the satellites’ cancellation seems to be connected with disagreements within ESRO in regard to the juste retour allocation of work for the project.

ESRO’s First satellite in Orbit!
Despite the uncertainties about its future space plans, Europe is currently celebrating the launch of the first ESRO satellite to make it to orbit! ESRO-2B was launched 17 May from Vandenberg Air Force Base in California on a Scout B rocket.

This flight occurred almost exactly one year after the loss of its predecessor ESRO 2A on 29 May, 1967. Also launched from Vandenberg on a Scout B, ESRO 2A was lost due to a malfunction of the rocket’s fourth stage, which prevented the satellite from reaching orbit. These first European satellites were launched on Scout vehicles due to an offer from NASA to launch the ESRO's first two satellites free of charge as a ‘christening gift’ for the organisation (and no doubt to woo ESRO towards continuing with US launchers even when ELDO's Europa rockets become operational!)

ESRO 2B, also known as Iris (International Radiation Investigation Satellite), Iris 2 and ESRO 2, is an astrophysical research satellite developed to study solar and cosmic radiation and their interaction with the Earth and its magnetosphere. This will provide continuity to the solar radiation observations of earlier satellites and continue similar particle measurements carried out by the UK’s Ariel 1 satellite. It is the first mission controlled by teams at the European Space Operations Centre (ESOC) in Darmstadt, Germany.

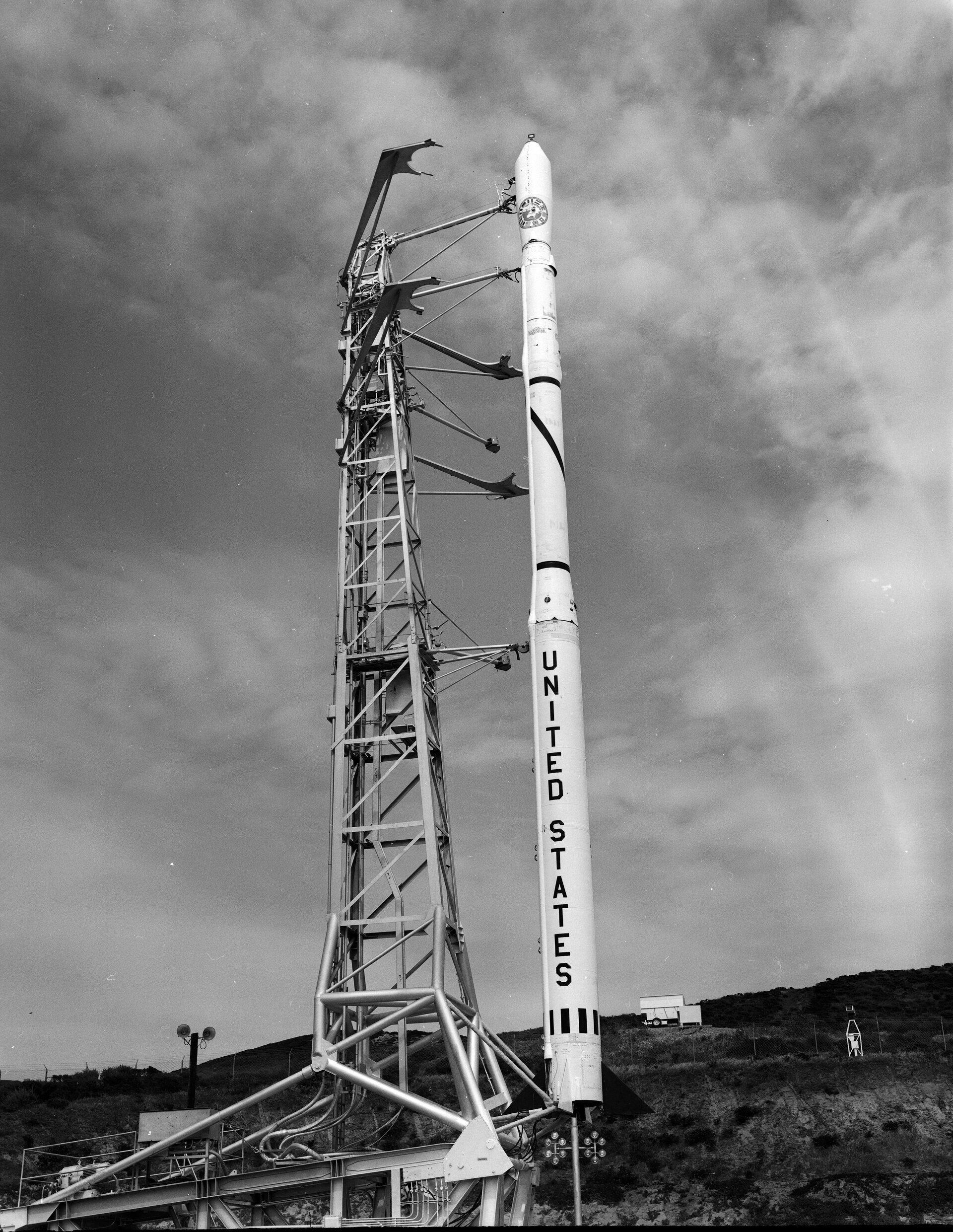

ESRO 2B being prepared for launch

Placed into a highly elliptical near-polar orbit, with an orbital period of 98.9 minutes, ESRO-2B is about 33.5 inches in length, with a diameter just on 30 inches. It weighs 196 lb and is spin-stabilised, with a spin rate of approximately 40 rpm. The satellite is powered by 3456 solar cells on the outer body panels, supplemented by a nickel/cadmium battery. The satellite carries the same seven instruments as its lost predecessor: to detect high-energy cosmic rays, determine the total flux of solar X-rays, measure trapped radiation, investigate Van Allen belt protons and cosmic ray protons. And if you’re wondering why ESRO 2B is the first European satellite and what happened to ESRO 1, the simple answer is that ESRO 1 has yet to be launched! Difficulties in the development of the payload for the polar ionospheric satellite ESRO 1, designed to study how the auroral zones responded to geomagnetic and solar activity, meant that it was eventually agreed to launch ESRO-2 ahead of it. ESRO 1 is due for launch around October this year, so we here at Galactic Journey will cover its story soon. ESRO 2B being tracked at the ESOC mission control centre










No comments Leave A Comment
Science / Space Race

[April 8, 1968] Ups, Downs and Tragedy: An Eventful Month in Space (Gagarin's crash, Zond-4, OGO-5, Apollo-6)

1 Comment


by Kaye Dee

Despite the continued hiatus in human spaceflight on both sides of the Iron Curtin, March and early April have been a busy time in space exploration. But, sadly, I have to commence this review with the tragic news that Colonel Yuri Gagarin, the first person in space, was killed in a plane crash during a training flight on 27 March. Very little is currently known about the circumstances surrounding Gagarin’s death, which has occurred just one month shy of the first anniversary of the loss of Cosmonaut Vladimir Komarov in the Soyuz-1 accident.

Loss of a Space Hero
There have long been rumours that the Soviet leadership refused to allow Gagarin to fly high performance jets or make another spaceflight due to his invaluable propaganda status as Cosmonaut No. 1. However, it seems that since Gagarin completed an engineering degree in February, he had finally been allowed to resume flight status and was undertaking training flights to regain his lapsed jet pilot qualifications.

According to an official government commission investigating the crash, Col. Gagarin was flying a two seat MiG-15 trainer with Colonel Vladimir Seryogin, 46, described as an experienced test pilot and instructor on the training flight. Taking off at 10 a.m., Gagarin and Seryogin apparently flew east 70 miles from Moscow. After completing the training flight, around 10.30, Gagarin radioed that he was returning to base. The plane was then at 13,000 feet. A minute later ground control could not establish contact.

A MiG-15UTI, the same type as the aircraft Gagarin was flying at the time of the crash

An air search began, and a helicopter found the wreckage in a forest. The plane had dived into the ground at an angle of 65 to 70 degrees and was destroyed, killing both men. No information as to the cause of the crash has so far been forthcoming, but a story has been circulated that Gagarin heroically sacrificed himself, refusing to bail out of his stricken aircraft to guide it away from crashing in a populated area. How much truth there is to this, or whether it is pure propaganda, cannot be determined at this time.

Cosmonaut No. 1 is “flying through space forever”
Following an autopsy, the bodies of Gagarin and Seryogin were cremated the day after the crash and the ashes returned to Moscow, where the urns lay in state for 19 hours in the Red Banner Hall of the Soviet Army. Thousands are reported to have filed past to pay their respects to the world’s first space traveller. Thousands more lined the streets as the flower-covered urns, borne on a caisson drawn by an armoured troop carrier, moved slowly to Red Square along a 2½-mile route. The funeral procession included the Gagarin and Seryogin families and the highest leaders of the Soviet state and Communist Party.

The funeral procession for Gagarin and Seryogin making its way towards Red Square

Gagarin and Seryogin were both interred in the Kremlin Wall, behind Lenin's Tomb in Red Square. In what is said to be a rare honour, car horns, factory whistles and church bells sounded in unison as the urn bearing Gagarin's ashes was inserted into a niche in the red brick wall. Then the nation fell still for a minute of silence, followed by a final salvo of cannon fire. A day of national mourning was also declared, the first time this has ever been done in the USSR for someone not a national leader. President Johnson, UN Secretary General U Thant and other world leaders sent messages of condolence. John Glenn sent a personal letter of sympathy to Col. Gagarin’s wife Valentina.

Seryogin and Gagarin buried side by side in the Kremlin Wall. Their various honours and awards are displayed before their portraits

Gagarin was just 34 years old when he died, leaving two young daughters, aged nine and seven. He was based at the cosmonaut training centre near Moscow, involved in training other cosmonauts when not engaged in official duties as a public figure. Little is known about Col. Seryogin, but he has been described as a Hero of Soviet Union and the commander of an air unit. It is unknown if he is also a member of the Soviet cosmonaut corps or has any other role in the Russian space programme.

Gagarin’s words upon landing after his space flight were “I could have gone on flying through space forever”. Though he never returned to space in this life, his spirit surely resides in the cosmos now.

Making up Lost Ground?
The somewhat mysterious Zond-4 unmanned spacecraft was launched on 2 March. A TASS news agency announcement of the launch described Zond-4 as an “automatic station”, “designed to study the outlying regions of near-earth space.”

Thanks to my friends at the Weapons Research Establishment, here is a photo of a Proton rocket, rumoured to be the type used to launch Zond-4.

TASS reported that Zond-4 was put into an initial 170-mile parking orbit, before being sent on a “planned flight” further into space, apparently reaching the environs of the Moon. According to my contacts at the WRE, Zond 4’s flightpath reached an apogee of 240,000 miles, “comparable to lunar altitude”.

No further information was released by TASS about the mission, which has occurred several years after previous launches in the Zond series: Zond-1 was launched in April 1964, Zond-2 in November that year, and Zond-3 in July 1965. “Zond” is the Russian word for “probe” and these earlier spacecraft were apparently planetary or lunar missions. Could Zond-4 actually have been an attempt by the Soviet Union to make up lost ground with a test of the new Soyuz spacecraft, presumably redesigned or modified following the failed Soyuz-1 mission last year?

Does this cutaway illustration represent mysterious Zond-4? My WRE friends think it might!

It would hardly be the first time that the Soviet Union has concealed real purpose of a space mission behind the name of a different spacecraft series. (paging Mr. Kosmos/Cosmos!). As the Soyuz vehicle is believed to be the USSR’s answer to Apollo, a test of an improved spacecraft out to lunar distance would certainly make sense at this time, with the Apollo 6 mission (see below) testing out the Apollo Command and Service Modules just a few days ago.

Whatever its mission, Zond-4 returned to Earth on 9 March, but there was no official communique on the conclusion of the flight. This silence suggests that the re-entry failed in some way and that the spacecraft was either destroyed on re-entry or crashed on landing. If Zond-4 was a test of the Soyuz vehicle, could its loss have been due to a repeat of the parachute failure that doomed Soyuz-1 last year? If this was the case, it does not bode well for the USSR getting its lunar programme back on track in time to challenge the United States in the race for the Moon.

Go, OGO-5!
Just two days after the launch of Zond-4, the United States launched the latest satellite in its Orbiting Geophysical Observatory (OGO) series of scientific satellites. OGO-5 soared aloft on 4 March, establishing itself in a highly elliptical orbit with a 170 mile perigee and a 92,105 mile apogee. The orbital inclination was 31.1 degrees, with the satellite taking 3796 minutes to complete one orbit. The 1,347 lb satellite carries more experiments than any other automated spacecraft to date.

OGO-5 First day Cover and informational insert, courtesy of my Uncle Ernie, the philatelic collector

OGO-5 is primarily devoted to observation of the Earth’s upper atmosphere and its interaction with conditions in the space environment. Like earlier OGO satellites, it carries instruments for studying solar flares (which can also detect cosmic X-ray bursts) and a gamma-ray detector. This will enable it to examine the hazards and mysteries of Earth's space environment at a time when radiation-producing flares on the Sun are intensifying. It will also chart magnetic and electric forces in space, measure gases in Earth's upper atmosphere, investigate the Aurora Borealis over the North Pole and listen for the puzzling radio noises that have been detected from the planet Jupiter.  Each of OGO-5’s predecessors is still operational at this time, so let’s hope the latest Orbiting Geophysical Observatory also has a long life ahead of it.

Apollo 6: NASA Keeps Moving Forward
If Zond-4 has been an un-announced trial of the USSR’s Soyuz lunar spacecraft, Apollo-6 has been NASA’s very public test flight of the Saturn-5 rocket and some of the modifications to the Apollo Command Module.

Launched on 4 April, Apollo-6 marked the second test flight of the massive Saturn-5 launch vehicle, crucial for reaching Moon. The primary objective of the mission was to test the performance of the Saturn-5 and the Apollo spacecraft, the first time that the Command and Service Modules (CSM) would be fully tested in space. In particular, the mission was intended to demonstrate that the Saturn-5’s S-IVB third stage could send the entire Apollo spacecraft (CSM and Lunar Module) out to lunar distances. Although things didn’t go quite to plan, Apollo-6 did accomplish its basic objectives.

An All-Up Test Flight
The Apollo 6 launch vehicle was the second flight-capable Saturn-5, AS-502, its simulated payload equal to about 80% of a full Apollo lunar spacecraft. The CSM it carried was a Block I (Earth-orbit mission) type, with some Block II (lunar mission) modifications. According to NASA “more than 140 tests since last October showed modifications of the Apollo spacecraft since the 1967 disaster had drastically reduced the hazard to life”.

Possibly the most important modification was a new crew hatch, intended to be tested under lunar return conditions. This new hatch incorporated the heat shield and crew compartment hatches of the original Apollo design into a single hatch, called the "unified" design. This has been in response to the Apollo-1 investigation board finding that the dual hatches were too difficult to open in case of emergency and had contributed to the deaths of the crew.

Apollo-6's redesigned unified hatch, photographed during a post-flight inspection of the Commend Module

Like the earlier Apollo-5 test flight, Apollo-6 carried a simulated Lunar Module (LM) which lacked the descent-stage landing gear. It also had no flight systems, and its fuel and oxidiser tanks were liquid-ballasted. While the LM remained inside the Spacecraft-Lunar Module Adapter throughout the flight, its ascent stage was instrumented to determine the craft’s structural integrity and the vibration and acoustic stresses to which it was subjected.

Apollo-6's "legless Lunar Module", formally called the Lunar Test Article LTA-2R

A few weeks prior to launch, NASA announced that, to further reduce fire hazards that contributed to the deaths of Apollo-1 astronauts, it intended to change to a mixture of 60% oxygen and 40% cent nitrogen in the Command Module, while the spacecraft and its crew are on the ground and during launch. Once their spacecraft left the launch pad, the astronauts would switch to pure oxygen. Since the gas mixture will be used in the spacecraft only during ground operations, NASA has not planned any change in the existing environmental control system, so the decision did not affect the Apollo 6 mission.

Apollo 6: What Was Planned
The original Apollo 6 mission plan intended to send the CSM and simulated lunar module into a trans-lunar trajectory. (That trajectory, although passing beyond lunar orbit distance, would not encounter the Moon, which was in another part of its orbit at the time.) The Saturn-5’s S-IVB third stage would be fired for trans-lunar injection, with the CSM separating from the S-IVB soon after. The Service Module engine would then fire to slow the CSM, reducing its apogee to 11,989 nmi.

NASA illustration showing the CSM and LM inside the Spacecraft-Lunar Module Adapter, as they would be at trans-lunar injection

The CSM would then return to Earth as if it had experienced “direct-return” abort during a Moon mission. As it returned, the SM engine would fire again, accelerating the CSM to simulate the conditions that an Apollo spacecraft would encounter on its return from the Moon: a re-entry angle of −6.5 degrees and velocity of 36,500 ft/s. The entire test flight was planned with a duration of about 10 hours.

Not Quite Going to Plan
After the launch was delayed for some days due to problems with guidance system equipment and fuelling, Apollo 6 made a smooth lift-off from Kennedy Space Centre. However, during the last ten seconds of first stage firing, the vehicle severely experienced a type of longitudinal oscillation known as “pogo”. Pogo occurs when a partial vacuum in a rocket’s fuel and oxidiser feed lines reaches the engine firing chamber, causing the engine to “skip”. The pogo phenomenon is well-known, since rockets have experienced it since the early days of spaceflight, and it occurred in launchers such as Thor and Titan II (used for the Gemini program).

While the Apollo-4 Saturn-5 also experienced a mild form of pogo, Apollo-6 was subjected to extreme pogo vibrations. It appears that these oscillations, travelling along the length of the huge Moon rocket, caused multiple problems with the vehicle. Two engines in the second stage shut down early, although the vehicle's onboard guidance system was able to compensate by burning the remaining three engines for 58 seconds longer than planned. The S-IVB engine also experienced a slight performance loss and had to burn for 29 seconds longer than usual. Intense vibrations were felt in the Command Module that could have caused injuries had a crew been onboard. There was also some superficial structural damage to the Spacecraft Lunar Module Adaptor (SLA). A chase plane image of the Apollo-6 launch, taken at approximately the time of the pogo oscillations. It shows an area of discoloration on the SLA indicative of superficial damage and what appears to be falling pieces of debris, perhaps a panel or two shaken lose by the pogo vibrations

The underperformance of the apparently pogo-damaged engines resulted in the third stage being inserted into an elliptical parking orbit, rather than the planned 100 nmi circular orbit. Although Mission Control decided that this did not prevent the mission from continuing, when the vehicle was ready for trans-lunar injection, the apparently damaged S-IVB engine failed to restart.

Repeating Apollo-4
Without the ability to continue with the original flight plan, Mission Control decided to complete some of the mission objectives by adopting a flight plan similar to that of Apollo-4. The SM's Service Propulsion System (SPS) was used to raise the spacecraft into an orbit with a 11,989 nmi apogee, from which it would re-enter. However, the SPS engine did not have enough fuel for a second burn to accelerate the atmospheric re-entry and the spacecraft was only able to enter the atmosphere with a velocity of 33,000 ft/s, instead of the planned 36,500 ft/s that would simulate a lunar return.

With the SM was jettisoned just before atmospheric re-entry, the CM splashed down 43 nmi from the planned landing site north of Hawaii, ten hours after launch. It was recovered by the USS Okinawa.

A Rocket's Eye View
Unlike earlier unmanned missions, the Apollo-6 Saturn-5 was fitted with several cameras intended to be ejected and later recovered. Three of the four cameras on the first stage failed to eject and were lost and only one of the two cameras on the second stage was recovered. Fortunately, this camera provided spectacular views of the separation of the first and second stages.

Two spectacular views of the interstage between the first and second stages falling away, taken from Apollo-6's second stage camera. How amazing that we can now see events happening during a launch that cannot be observed from the ground!

The CM also carried two cameras: a motion picture camera, intended to be activated during launch and re-entry and a 70mm still camera. Unfortunately, as the technical issues meant that the mission took about ten minutes longer than planned, the re-entry events were not filmed. However, the still camera, pointed at the Earth through the hatch window provided impressive photos of parts of the United States, the Atlantic Ocean, Africa, and the western Pacific Ocean. Advanced film and filters, improved colour balance and higher resolution have provided images that are a significant improvement on the photographs taken on previous American crewed missions and demonstrated that future imagery from space will be useful for cartographic, topographic, and geographic studies.

A view of the Dallas-Fort Worth area in Texas, taken from the Command Module's 70mm still camera. Special thanks to the Australian NASA representative for providing me with rush copies of these incredible Apollo-6 images for this article

What’s Next for Apollo?
NASA announced in mid-March that its first Earth-orbiting Apollo mission will be launched on a Saturn 1 vehicle and spend as long as ten days in orbit. The flight, which could come as early as mid-August, will be crewed by astronauts Walter Schirra, Donn Eisele and Walter Cunningham. If that mission goes well and the Saturn-5 is cleared for manned launchings, astronauts James McDivitt, David Scott and Russell Schweickart will ride a Saturn-5 into Earth orbit two or three months later to conduct flight test of the lunar module.

Following the return of Apollo-6, Apollo Programme Director Samuel C. Phillips said, “there's no question that it's less than a perfect mission”, although the Saturn-5’s demonstration of its ability to reach orbit despite the loss of two engines, was “a major unplanned accomplishment”. However, Marshall Space Flight Centre Director Wernher von Braun has recognised that the “flight clearly left a lot to be desired. … We just cannot go to the Moon [with this problem],” referring to the extreme pogo experienced on the flight. This means that solving the pogo phenomenon is now a major priority for NASA in order to keep the Apollo program on track and bolster confidence in the Saturn-5 vehicle. Can they do it?








1 Comment Leave A Comment
Science / Space Race

[January 24, 1968] On Track for the Moon (Apollo 5 and Surveyor 7]

Leave a comment



by Kaye Dee

As we approach the first anniversary of the shocking loss of the crew of Apollo 1, the success of the recent Apollo 5 mission reminds us that the spirit of Grissom, White and Chaffee lives on as NASA continues developing and testing the technology to make a manned lunar landing a reality.

Apollo 1's Legacy
Although the fire that engulfed Apollo 1 and killed its crew destroyed its Command Module, the accident took place on the launchpad during a launch simulation, and fortunately the Saturn IB booster intended to loft that mission into orbit remained undamaged. Because that AS-204 vehicle was the last Saturn IB with full research and development instrumentation, NASA decided that this rocket would be re-assigned to Apollo 5, the much-delayed first test flight of the Lunar Module – the spacecraft essential for successfully landing astronauts on the Moon – while manned Apollo missions continue on hold.

From LEM to LM
The spacecraft we now call the Lunar Module (LM) became part of the Apollo programme in 1962, when NASA decided to adopt the technique of lunar orbit rendezvous (LOR) for its Moon landing missions. First proposed in 1919 by Ukrainian engineer and mathematician Yuri Kondratyuk, the LOR technique uses two spacecraft that travel together to the Moon and then separate in lunar orbit, with a lander carrying astronauts from orbit to the Moon’s surface. The LOR method allows the use of a smaller and lighter lander than the large, all-on-one spacecraft originally proposed for Apollo, and also provides for greater flexibility in landing site selection.

An early diagram comparing the size of a lunar landing vehicle using the Direct Ascent method of reaching the Moon and a LOR lunar excursion vehicle

The version of lunar orbit rendezvous suggested to NASA by engineer John C. Houbolt called for a landing vehicle consisting of two parts: a landing stage, that would accomplish the descent from orbit and remain on the Moon’s surface, and an ascent stage that would carry the astronauts back to the main spacecraft in orbit. This design gave us the Command Service Module as the Moon orbiting spacecraft, and what was originally called the Lunar Excursion Module (LEM, pronounced as a word, not as the individual letters) as the vehicle that would land astronauts on the Moon.

Dr. Houbolt illustrating the main spacecraft needed for his Lunar Orbit Rendezvous proposal for the Apollo programme

In June 1966, NASA changed the name to Lunar Module (LM), eliminating the word “excursion”. My friends at the WRE tell me that this was because there were concerns that using “excursion” might make it sound like the lunar missions were frivolous, and so reduce support for the Apollo programme! Despite the official name change, the astronauts, as well as staff at Grumman, still call it “the lem”, which certainly feels easier to say.

Delays…Delays…
However, the two-stage LEM/LM has proved much harder to develop and manufacture than the contractor Grumman originally anticipated, because of the complexity and level of reliability required of the hardware. Originally, NASA planned for the automated test flight of LM-1, the first Lunar Module, to occur in April 1967, but the delivery of the spacecraft was repeatedly delayed: the two stages of LM-1 did not arrive at Cape Kennedy until late June last year.

The separately-crated stages of LM-1 arriving at Kennedy Space Centre on board a Super Guppy cargo plane. The stages were mated to each other four days later

A team of 400 engineers and technicians then checked out the spacecraft to ensure that it met specifications. The discovery of leaks in the ascent stage propulsion system meant that the ascent and descent stages were demated and remated multiple times for repairs between August and October. LM-1 was finally mounted on its Saturn IB booster on 19 November and a launch date was set for the latter part of January 1968.

LM-1, encased in its SLA, being hoisted up for mounting on its launch vehicle

Lift Off at Last!
Although the launch was delayed for 10 hours when the countdown was held up by technical difficulties, Apollo 5 finally lifted off on 22 January 1968 (23 January for us here in Australia). The mission was designed to test the LM's descent and ascent propulsion systems, guidance and navigation systems, and the overall structural integrity of the craft. It also flight tested the Saturn V Instrument Unit.

Because they would not be needed during the Apollo 5 test flight, LM-1 had no landing legs, which helped to save weight. NASA also decided to replace the windows of LM-1 with aluminium plates as a precaution, after one of the windows broke during testing last December. Since the mission was of short duration, only some of LM-1’s systems were fully activated, and it only carried a partial load of consumables.

LM-1's "legless" configuration is clearly seen in this view of it during checkout at Kennedy Space Centre

The Apollo 5 flight did not include Command and Service Modules (CSM), or a launch escape tower, so pictures of the launch vehicle show it to look more like its predecessor AS-203 than AS-202, which tested the CSM. The Apollo 5 stack had an overall height of 180ft and weighed 1,299,434 lbs. The LM was contained within the Spacecraft Lunar Module Adapter (SLA), located just below the nose cap of the rocket. The SLA consists of four panels that open like petals once the nose cap is jettisoned in orbit, allowing the LM to separate from the launcher.

The Saturn IB worked perfectly, inserting the second stage and LM into an 88-by-120-nautical-mile orbit. After the nose cone was jettisoned, LM-1 coasted for 43 minutes 52 seconds, before separating from the SLA into a 90-by-120-nautical-mile orbit. NASA’s Carnarvon tracking station in Western Australia tracked the first six orbits of the mission, while the new Apollo tracking station at Honeysuckle Creek, near Canberra, followed LM-1’s first orbit.

Putting LM-1 Through its Paces
Since it had no astronaut crew, the LM-1 test flight had a mission programmer installed, which could control the craft remotely. The first planned 39-second descent-engine burn commenced after two orbits, only to be aborted by the Apollo Guidance Computer after just four seconds, as the spacecraft was not travelling at its expected velocity. Exactly why this occurred is now being investigated. Of course, if there had been a crew onboard, the astronauts would probably have been able to analyse the situation and decide whether the engine should be restarted.

Instead, Mission Control, under Flight Director Gene Kranz, decided to conduct the engine and "fire-in-the-hole" tests under manual control, as without these test firings the mission would be deemed a failure. The "fire in the hole" test verified that the ascent stage could fire while attached to the descent stage, a procedure that will be used to launch from the Moon’s surface, or in the event of an aborted lunar landing. It involves shutting down the descent stage, switching control and power to the ascent stage, and firing the ascent engine while the two stages are still mated.

Apollo 5 Flight Director Gene Kranz (right) with future Lunar Module crew Astronauts McDivitt (left) and Schweickart (centre) discussing LM-1's control issues

Both the ascent and descent engines were fired multiple times during the flight to demonstrate that they could be restarted after initial use. Eight hours into the mission, a problem with the guidance system did cause the ascent stage to spin out of control, but the vital engine test burns had been completed by then. LM-1 also demonstrated its ability to maintain a stable hover, and the guidance and navigation systems controlled the spacecraft's attitude and velocity as planned.

At the conclusion of the flight testing, the separated ascent and descent stages were left in a low orbit, with the anticipation that atmospheric drag would naturally cause their orbits to decay so that the craft would re-enter the atmosphere. The ascent stage re-entered and was destroyed on 24 January, but as I write the descent stage is still in orbit.

Another Step on the Road to the Moon
NASA considers that the LM performed well during its test flight, and have deemed Apollo 5 a success. One wonders now if the second unmanned test flight with LM-2, planned for later this year, will need to go ahead. NASA also plans to return astronauts to space with a test flight of the redesigned Command Module in September this year. Once that goal is accomplished, every part of the Apollo system will have been tested in spaceflight and it will finally be “Go!” for astronauts to shoot for the Moon. I can’t wait!

Lunar map showing the landing sites of all the successful Surveyor missions

So Long Surveyor!
As the Apollo programme powers forward, the last of NASA’s automated lunar exploration programmes is coming to an end, with Surveyor 7 now in operation on the Moon. The Surveyor project was developed with the goal of demonstrating the feasibility of soft landings on the Moon's surface, ensuring that it would be safe for Apollo crews to touch down in their Lunar Modules. The Surveyor landings have complemented the Lunar Orbiter programme (which drew to a close in the latter part of last year), which imaged the Moon from orbit, mapping the lunar surface and providing detailed photographs of many proposed Apollo landing sites.

Making It Safe for a LM Landing
Of the seven Surveyor missions, five achieved their objectives, returning valuable data and images from the lunar surface. Surveyor 1, launched on 30 May (US time) in 1966, was the first American spacecraft to soft land on the Moon (following the successful landing of the USSR’s Luna 9 on 31 January that year), returning 11,237 images of the lunar surface. Unfortunately, its successor, Surveyor 2, failed in September 1966, impacting onto the lunar surface when a malfunction of the guidance system caused an error in the mid-course correction as it travelled to the Moon.

Surveyor 1's panorama of the lunar surface, which captured its shadow, cast by the light of the Earth

Surveyor 3, which lifted off on 17 April 1967, was the first to conduct in-situ experiments on the lunar soil, using its extendable arm and scoop. The spacecraft also returned over 6,000 images, including the famous "Surveyors Footprint" shot, showing its footpad on the lunar surface. The probe had a lucky escape as it tried to land: a problem with its descent radar caused the descent engine to cut off late, resulting in the lander bouncing twice on the lunar surface before settling down to a final safe landing!

Surveyor 3's footprint and footpad on the lunar surface, showing how it bounced on landing. The extendable arm and scoop are visible on the left of the picture

Just three months later, in July, Surveyor 4 was not so lucky. After a textbook flight to the Moon, contact was lost with the spacecraft just 2.5 minutes before touchdown in the Sinus Medii (Central Bay) region and it crashed onto the lunar surface. It’s believed that the solid-fuel descent engine may have exploded.

Launched on 8 September, Surveyor 5 also encountered engine problems on descent to the lunar surface, with a leak in the spacecraft's thruster system. Fortunately, it survived to make a safe landing and returned over 20,000 photographs over three lunar days. Instead of a sampler arm, Surveyor 5 carried an alpha backscattering experiment, and had a bar magnet attached to one landing pad. It carried out the first off-Earth soil analysis and made one of the most significant finds of the Surveyor missions — that the Moon's surface is likely basaltic, and therefore suitably safe for human exploration.

Surveyor 5's alpha backscattering experiment, sometimes described as a chemical laboratory on the Moon

Surveyor 6 landed safely near the Surveyor 4 crash site in November 1967 carrying an instrument package virtually identical to Surveyor 5. The spacecraft transmitted a total of 30,027 detailed images of the lunar surface, as well as determining the abundance of the chemical elements in the lunar soil. As an additional experiment, Surveyor 6 carried out the first lift-off from the Moon. Its engines were restarted, lifting the probe 12 ft above the lunar surface, and moving it 8 ft to the west, after which it landed again safely, and continued its scientific programme.

Surveyor 7 – a Last Hurrah!
The successful completion of the Surveyor 6 mission accomplished all the goals that NASA had set for the Surveyor programme as an Apollo precursor. The JPL Surveyor team therefore decided that for the final mission they would aim for a riskier landing site, in the rugged highlands near the Tycho Crater. The engineers gave Surveyor 7 a less than 50-50 chance of landing upright due to the rough terrain in the area!

Tycho crater was the challenging landing site for NASA's last Surveyor mission

Launched on 7 January, Surveyor 7 is the last American robot spacecraft scheduled to land on the Moon before the Apollo astronauts. Its instrument package combines all the experiments used by its predecessors, in order to determine if the rugged terrain would be suitable for a future Apollo landing site.

During its first lunar day, the spacecraft’s camera has returned more than 14,000 images, including some views of the Earth! One of Surveyor 7’s innovations is the use of mirrors to obtain stereoscopic lunar photos. Laser beams directed at the Moon from two sites in the United States have also been recorded by cameras aboard Surveyor 7.

A view of the Earth captured by Surveyor 7's camera

Getting a Scoop
Surveyor 7’s versatile soil mechanics surface sampler is a key instrument on this mission. Designed to pick up lunar surface material, it can move samples around while being photographed, so that the properties of the lunar soil can be determined. It can also dig trenches up to 18 inches into the lunar surface to determine its bearing strength and squeeze lunar rocks or clods. The sampler is a scoop with a container which can be opened or closed by an electric motor. The scoop has a sharpened blade and includes two embedded magnets, to search for ferrous minerals and determine the magnetic characteristics of the lunar soil. So far, the moveable arm and scoop have performed 16 bearing tests, seven trenching tests, and two impact tests.

Only a few Surveyor 7 pictures are currently available, but this view of Surveyor 3 digging a trench into the Moon's surface shows how the scoop carries out this task

The scoop is mounted below the spacecraft’s the television camera so that it can reach the alpha-scattering instrument in its deployed position and move it to another selected location. In fact, the scoop helped to free the alpha-scattering instrument when it failed to deploy on the lunar surface. It has also been used to shade the alpha-scattering instrument and move it to different positions to evaluation other surface samples. During 36 hours of operation between January 11 and January 23, 1968, the sampler has performed flawlessly. Soil analyses have been conducted, as well as experiments on surface reflectivity and surface electrical properties.

Surveyor 7 is now “sleeping” through its first lunar night. If it survives this period of intense cold, hopefully it will continue to produce significant results during its next lunar day. But if it doesn’t, the scientists and engineers at NASA’s Jet Propulsion Laboratory are already describing the Surveyor programme as a “treasure house of information for landing a man on the Moon before the end of this decade”. This has to be a fitting epitaph for any space mission.








No comments Leave A Comment
Fashion, music, politics, sports

[December 26, 1967] The Prime Minister is Missing! (Disappearance of Australian Prime Minister Harold Holt)

3 Comments



by Kaye Dee

Christmas is supposed to be a time of family celebration, but this year in Australia it has instead become a time of national mourning following the tragic disappearance of our Prime Minister, Mr. Harold Holt. The country is in shock as we come to terms with the loss of a relatively new national leader in an apparent drowning accident.

A Fateful Swim
The full circumstances surrounding the Prime Minister’s disappearance have yet to be established. What we do know is that on Sunday 17 December Mr. Holt was swimming off Cheviot Beach, south of the Victorian state capital of Melbourne, when he was lost to the view of friends onshore after swimming out into deep water and apparently being swamped by a large wave.

The Prime Minister’s love of the ocean is well known: he and his wife have beachside holiday homes in Queensland and at Portsea, not far from Cheviot Beach.  A strong swimmer, fond of skindiving and spearfishing, Mr. Holt apparently claimed to “know Cheviot beach like the back of my hand”, and to be familiar with its sometimes treacherous offshore currents. While skindiving on an earlier visit, Mr. Holt had once recovered a porthole from the wreck of the SS Cheviot, the ship which broke up and sank near the beach, due to its dangerous currents, with the loss of 35 lives on 20 October 1887.

On 17 December, while spending the weekend at Portsea, Mr. Holt and four companions decided to stop at remote Cheviot Beach for a swim before lunch when returning from a drive. The water conditions were rough and only one of Holt’s companions ultimately went into the water with him.  Mr. Holt swam out into deep water and may have been caught in a rip current when he disappeared. Mrs. Gillespie, one of the group who remained on the shore, saw Mr. Holt disappear, describing it as “like a leaf being taken out […] so quick and final”.

A Desperate Search
The Prime Minister’s disappearance sparked “one of the largest search operations in Australian history”. Three amateur divers initially tried to brave the heavy seas but found them too turbulent. They were soon joined by the Victoria Police, deploying helicopters, watercraft, police divers, and two Navy diving teams. By the end of the day, more than 190 personnel were involved. However, the leader of one of the Navy teams apparently believed that “any chance of finding the Prime Minister was lost by the Sunday night”.

Despite this gloomy assessment, the number of searchers eventually increased to more than 340, including 50 divers, working in extremely difficult weather and sea conditions. The intense search continued until December 21, but was then scaled back, although the quest to find Mr. Holt’s body still continues.

Readers outside Australia may be wondering how the leader of the country could go swimming without being accompanied by a security detail. Australian leaders have traditionally not employed bodyguards or other protective measures and Mr. Holt similarly refused a security detail when he first assumed the Prime Ministership: he considered it was unnecessary and might distance him from the public. Although a couple of incidents in mid-1966 resulted in Holt grudgingly accepting a single bodyguard for his official duties, he continued to refuse any protection while on holiday, considering it a violation of his privacy. (Nasty rumour has it that he also wanted to conceal the extramarital affairs he has been suspected of indulging in). Thus, he was unaccompanied by any official security during his weekend break.
The first searchers combing Cheviot Beach, looking for any clue to the Prime Minister's disappearance

A Man of the Twentieth Century
The third Australian Prime Minister to die in office, Mr. Holt was a relatively young man, only 59. The first of our national leaders to be born in the Twentieth Century, Holt believed it was his responsibility as Prime Minister “to reflect the modern Australia to my fellow countrymen, to our allies and the outside world at large”. Mr. Holt became Prime Minister when he assumed the leadership of the incumbent Liberal Party in January 1966.

A lawyer and political lobbyist before being elected to the Federal Parliament, Mr. Holt was an enthusiastic sportsman and swimmer, as well as an effective orator, making him a sharp contrast with his Prime Ministerial predecessors and most of his parliamentary colleagues. His popularity with the public was reflected in his crushing victory in the elections of late 1966.  Mr. Holt (right), at Parliament House, during his period as Treasurer to his predecessor, Sir Robert Menzies (left)

With extensive political and governmental experience, serving as a Minister in several critical portfolios, Mr. Holt helped to transform post-War Australia into a modern democracy that now sees itself as more than just an outpost of the British Empire.

His important economic reforms have included the creation of the Reserve Bank of Australia and the introduction of decimal currency. As Prime Minister he also promoted significant political reforms, including the nation-building post-war immigration scheme; dismantling the shameful White Australia policy (which largely precluded non-white people from immigrating to Australia); and amending the Constitution to give the Federal Government responsibility for Aboriginal affairs. This latter change means that Australia’s first inhabitants can now be counted in the national census for the first time. (Yes, I’m embarrassed to say that until this year, our Constitution did not recognise Aboriginal Australians as citizens or count them in the population of the country!)

Mr. Holt supported Australia’s membership of INTELSAT and the expansion of the NASA tracking station networks in Australia. In June this year, he became the first Australian Prime Minister to make a satellite broadcast, appearing in the special “Australia Day” programme from Expo 67 in Montreal. In March, he officially opened the Manned Space Flight Network station at Honeysuckle Creek, near Canberra, which will play a major role in the Apollo Moon programme. While there, he received as a special gift from the staff, a portrait generated by one of the station computers! Mr. Holt's computer-generated portrait. It took the staff at the NASA Honeysuckle Creek tracking station about 20 hours to programme the computer to produce this image.

Turning Our Eyes to Asia
Mr. Holt also had the foresight to recognise that, in a region of politically unstable nations, Australia needs to be better engaged with Asia and the Pacific. Earlier this year, he said in Parliament that “geographically we are part of Asia, and increasingly we have become aware of our involvement in the affairs of Asia – our greatest dangers and our highest hopes are centred in Asia's tomorrows”.

Prime Minister Holt at the South East Asian Treaty Organisation's meeting in Manila in October 1966

As Prime Minister, Mr. Holt's first overseas trip was to South-East Asia in April 1966, visiting Malaysia, Singapore, South Vietnam, and Thailand. This year, he toured Cambodia, Laos, South Korea, and Taiwan, and had planned future visits to other Asian nations.

Of course, in considering Australian involvement in Asia, we cannot ignore the ongoing conflict in Vietnam. Fervently opposed to Communism, Mr. Holt’s approach to national security emphasised countering Communist expansion. This lay behind his interest in encouraging greater engagement with Asia and his government’s expansion of Australia's involvement in the Vietnam War. In March 1966, Prime Minister Holt tripled the number of Australian troops in Vietnam to around 4,500, which included 1,500 conscript national servicemen: since October this year, with the most recent announcement of a troop increase, there are now over 8,000 Australian military personnel stationed in South Vietnam.
Although Mr. Holt’s expansion of Australia’s involvement in the Vietnam conflict was initially popular – and has been considered a key factor in his landslide election victory last year – the tide of public opinion has been turning against the war in recent months, especially as greater numbers of young men, conscripted into national service through a “birthday lottery” system that many people consider unfair, are being sent overseas to fight.

“All the Way with LBJ!”
The Vietnam War has dominated Australian foreign policy since Mr. Holt became Prime Minister, as he believed that “unless there is security for all small nations, there cannot be security for any small nation”. Believing that the United States provides a critical “shield” for Asian and South Pacific nations against Communist aggression, Mr. Holt cultivated a close relationship between Australia and America and formed a strong personal friendship with President Johnson, whom he had first met in 1942, when Mr. Johnson visited Melbourne as a naval officer.

In 1966, Mr. Holt visited the U.S. twice. On his first visit, he made a comment at a White House address that has become somewhat controversial here in Australia. While apparently intending the remark to be taken as a “light-hearted gesture of goodwill”, Mr. Holt’s comment that “you have an admiring friend, a staunch friend that will be all the way with LBJ” (a reference, I’m told, to the slogan used in Mr. Johnson's 1964 presidential campaign), was seen by many in Australia as sycophantic and embarrassingly servile.

Despite the controversy, I suspect that this jingle-like phrase will become one of Mr. Holt’s best-known utterances. It certainly appeared again when President Johnson made the first ever visit to Australia by a serving US President in October 1966. The President toured five cities, being greeted by both large crowds of the curious and anti-war demonstrators. I accompanied my sister and her family to join the crowds lining the motorcade route in Sydney, as I was certainly interested to get a glimpse of a US President!

Changing of the Guard
No trace of Mr. Holt was found by the evening of 18 December. At 10 p.m. that day the Governor-General announced that the Prime Minister was presumed dead. Since the country cannot be left without a leader, Mr. John McEwen, the leader of the junior government coalition party, the Country Party – and therefore the Deputy Prime Minister – has been sworn in as the interim Prime Minister, and the Liberal party will elect a new leader, and thus a new Prime Minister, early in the new year. Although Mr. Holt’s body still has not been found, a memorial service was held on 22 December, at St Paul's Anglican Cathedral, Melbourne. There were 2,000 people within the cathedral, while thousands more lined the nearby streets and listened through a public-address system. The funeral was broadcast on radio and television and, also via satellite to the United States, the UK and Europe. This was the first major satellite broadcast from Australia of a significant local news event. Interim Prime Minister McEwen with international dignitaries at Harold Holt's memorial

International dignitaries and heads of state attended the memorial service, including Charles, Prince of Wales (representing Her Majesty the Queen), the Prime Minister and Opposition Leader of the UK, the UN Secretary General and President Johnson. Seven Prime Ministers and Presidents from Asian and Pacific Countries also attended, in addition to foreign ministers and ambassadors from many countries in the region and the Commonwealth.

A Tragic Accident, Suicide or Something More Sinister?
Without a body, no definitive conclusions can be reached as to what happened to the Prime Minister. The official view, and it seems that of his family, close friends and colleagues, is that Mr. Holt overestimated his swimming ability and went literally out of his depth in dangerous conditions, resulting in a tragic accidental drowning. Other possibilities include that he may have suffered a heart-attack or other sudden medical issue in the water (although his health was generally good), been stung by a deadly jellyfish (yes, we do have them in Australia), or attacked by a shark.

Some allegations have been raised that Mr. Holt committed suicide due to a number of political difficulties and controversies that have arisen in recent months. However, his wife and friends have rejected this as uncharacteristic of his personality. Already, outlandish theories have also been advanced for the Prime Minister’s disappearance, including suggestions that he has faked his own death in order to run off with a mistress, or that he has been assassinated by the CIA (but one would have to ask why, since he was so pro-American). As long as no body is found, I suspect that the mystery of Prime Minister Holt’s disappearance will continue to haunt, and fascinate, Australia – and that the bizarre theories will continue.

In the meantime, Australia mourns the loss of a forward-looking leader and the promise he might have represented.










3 Comments Leave A Comment
Science / Space Race

[November 12, 1967] Still in the Race! (Apollo-4, Surveyor-6, OSO-4 and Cosmos-186-188)

Leave a comment



by Kaye Dee

As I noted in my previous article, October was such a busy month for space activity that I had to hold over several items for this month. But November has already provided us with plenty of space news as well. Even though both American and Soviet manned spaceflight is currently on hold while the investigations into their respective accidents continue, preparations for putting astronauts and cosmonauts on the Moon are ongoing and the Moon race is still on!

“Oh, it’s terrific, the building’s shaking!”

Opening the door to human lunar exploration needs an immensely powerful booster, and the successful launch of Apollo-4 a few days ago on 9 November has demonstrated that NASA has a rocket that is up to the task. Although the Saturn 1B rocket intended to loft Apollo Earth-orbiting missions has already been tested, Apollo-4 (also designated SA-501) marked the first flight of a complete Saturn V lunar launcher.

The sheer power of the massive rocket took everyone by surprise. When Apollo-4 took off from Pad 39A at the John F. Kennedy Space Centre, the sound pressure waves it generated rattled the new Launch Control Centre, three miles from the launch pad, causing dust to fall from the ceiling onto the launch controllers’ consoles. At the nearby Press Centre, ceiling tiles fell from the roof. Reporting live from the site, Walter Cronkite described the experience: “… our building’s shaking here. Our building’s shaking! Oh, it’s terrific, the building’s shaking! This big blast window is shaking! We’re holding it with our hands! Look at that rocket go into the clouds at 3000 feet! … You can see it… you can see it… oh the roar is terrific!”

Firing Room 1 in the Launch Control Centre at Kennedy Space Centre, under construction in early 1966. The Apollo-4 launch was controlled from here

Could it be that the sound of a Saturn V launch is one of the loudest noises, natural or artificial, ever heard by human beings? (Apart, perhaps, from the explosion of an atomic bomb?) I hope I’ll get the opportunity to hear, and see, a Saturn V launch for myself at some point in the future.

The Power for the Glory

Developed by Dr. Wernher von Braun’s team at NASA’s George C. Marshall Space Flight Centre, everything about the Saturn V is impressive. The 363-foot vehicle weighs 3,000-tons and the thrust of its first-stage motors alone is 71 million pounds! No wonder it rattled buildings miles away at liftoff!

The F-1 rocket motor, five of which power the Saturn V’s S1-C first stage, is the most powerful single combustion chamber liquid-propellant rocket engine so far developed (at least as far as we know, since whatever vehicle the USSR is developing for its lunar program could have even more powerful motors).

The launcher consists of three stages. The Boeing-built S1-C first stage, when fully fuelled with RP-1 kerosene and liquid oxygen, has a total mass of 4,881,000 pounds. Its five F-1 engines are arranged so that the four outer engines are gimballed, enabling them to turn so they can steer the rocket, while the fifth is fixed in position in the centre. Constructed by North American Aviation and weighing 1,060,000 pounds, the S-II second stage has five Rocketdyne-built cryogenic J-2 engines, powered by liquid hydrogen and liquid oxygen. They are arranged in a similar manner to the first stage engines, and also used for steering. The Saturn V’s S-IVB third stage has been built by the Douglas Aircraft Company and has a single J-2 engine using the same cryogenic fuel as the second stage. Fully fuelled, it weighs approximately 262,000 pounds. Guidance and telemetry systems for the rocket are contained within an instrument unit located on top of the third stage.

Soaring into the Future

This first Saturn V test flight has been tremendously important to the ultimate success of the Apollo programme, marking several necessary first steps: the first launch from Complex 39 at Cape Kennedy, built especially for Apollo; the first flight of the complete Apollo/Saturn V space vehicle; and the first test of Apollo Command Module’s performance re-entering the Earth's atmosphere at a velocity approximating that expected when returning from a lunar mission. In addition, the flight enabled testing of many modifications made to the Command Module in the wake of the January fire. This included the functioning of the thermal seals used in the new quick-release spacecraft hatch design.


Up, Up and Away!

Apollo-4 lifted off on schedule at 7am US Eastern time. Just 12 minutes later it successfully placed a Command and Service Module (CSM), weighing a record 278,885 pounds, into orbit 115 miles above the Earth. This is equivalent to the parking orbit that will be used during lunar missions to check out the spacecraft before it embarks for the Moon.

After two orbits, the third stage engine was re-ignited (itself another space first) to simulate the trans-lunar injection burn that will be used to send Apollo missions on their way to the Moon. This sent the spacecraft into an elliptical orbit with an apogee of 10,700 miles. Shortly afterwards, the CSM separated from the S-IVB stage and, after passing apogee, the Service Module engine was fired for 281 seconds to increase the re-entry speed to 36,639 feet per second, bringing the CSM into conditions simulating a return from the Moon.


An image of the Earth taken from an automatic camera on the Apollo-4 Command Module

After a successful re-entry, the Command Module splashed down approximately 10 miles from its target landing site in the North Pacific Ocean and was recovered by the aircraft carrier USS Bennington. The mission lasted just eight hours 36 minutes and 54 seconds (four minutes six seconds ahead of schedule!), but it successfully demonstrated all the major components of an Apollo mission, apart from the Lunar Module (which is still in development) that will make the actual landing on the Moon’s surface. In a special message of congratulations to the NASA team, President Johnson said the flight “symbolises the power this nation is harnessing for the peaceful exploration of space”.

Goodbye Lunar Orbiters…

While Apollo’s chariot was readied for its first test flight, NASA has continued its unmanned exploration of the Moon, to ensure a safe landing for the astronauts. In August, Gideon gave us an excellent summary of NASA’s Lunar Orbiter programme, the first three missions of which were designed to study potential Apollo landing sites. Lunar Orbiter-3, launched back in February this year, met its fate last month when the spacecraft was intentionally crashed into the lunar surface on 9 October. Despite the failure of its imaging system in March, Lunar Orbiter-3 was tracked from Earth for several months for lunar geodesy research and communication experiments. On 30 August, commands were sent to the spacecraft to circularise its orbit to 99 miles in order to simulate an Apollo trajectory.

Lunar Orbiter-3 image of the Moon's far side, showing the crater Tsiolkovski

Each Lunar Orbiter mission has been de-orbited so that it will not become a navigation hazard to future manned Apollo spacecraft. Consequently, before its manoeuvring thrusters were depleted, Lunar Orbiter 3 was commanded on 9 October to impact on the Moon, hitting the lunar surface at 14 degrees 36 minutes North latitude and 91 degrees 42 minutes West longitude. Co-incidentally, Lunar Orbiter-4, which failed back in July and could not be controlled, decayed naturally from orbit and impacted on the Moon on 6 October. Lunar Orbiter-5, launched in August, remains in orbit.

…Hello Surveyor 6

A month after the demise of the Lunar Orbiters, NASA’s Surveyor-6 probe has made a much softer landing on the lunar surface, achieving a “spot on” touchdown in the rugged Sinus Medii (Central Bay – it’s in the centre of the Moon's visible hemisphere) on 10 November (Australian time; 9 November in the US). This region is a potential site for the first Apollo landing, but since it appeared to be cratered and rocky, mission planners needed to know if its geological structure (different to the ‘plains’ areas where earlier Surveyor missions have landed) could support the weight of a manned Lunar Module.

Only an hour after landing safely, Surveyor-6 was operational and sent back pictures of a lunar cliff about a mile from its landing point, which has been described as “the most rugged feature we have yet seen on the Moon”. The first panoramas from Surveyor indicate that the landing site is not as rough as anticipated, and seems suitable for an Apollo landing.

Deep Space Network stations in Australia are helping to support the Surveyor-6 mission, as well as Surveyor-5, that landed in the Mare Tranquilitatis (Sea of Tranquillity) in September and is still operational. Hopefully both spacecraft will survive the next lunar night, commencing two weeks from now. NASA plans to send one more Surveyor probe to the Moon, in January, so look out for a review of the completed Surveyor programme early next year.

Watching the Sun for Astronaut Safety

With the Sun moving towards its maximum activity late next year or early in 1969, and likely to still be very active when the Apollo landing missions are occurring (assuming that the programme resumes some time within the next 12 months), NASA has wasted no time in launching another spacecraft in its Orbiting Solar Observatory (OSO) series, to help characterise the effects of solar activity in deep space. A NASA spokesman was recently quoted as saying that “A study of solar activity and its effect on Earth, aside from basic scientific interest, is necessary for a greater understanding of the space environment prior to manned flights to the Moon”.

OSO-4 under construction

Launched on 18 October, OSO-4 (also known as OSO-D) is the latest satellite developed under the leadership of Dr. Nancy Grace Roman, NASA’s first female executive, who is Chief of Astronomy and Solar Physics. The satellite is equipped to measure the direction and intensity of Ultraviolet, X-ray and Gamma radiation, not just from the Sun, but across the entire celestial sphere.

The OSO-4 spacecraft, like its predecessors, consists of a solar-cell covered “sail” section and a “wheel” section that spins about an axis perpendicular to the pointing direction of the sail. The sail carries a 75 pound payload of two instruments that are kept pointing on the centre of the Sun. The wheel carries a 100 pound payload of seven instruments and rotates once every two seconds. This rotation enables the instruments to scan the solar disc and atmosphere as well as other parts of the galaxy. The satellite’s extended arms give it greater axial stability.

Hopefully, OSO-4 will have a long lifespan, producing data as solar activity increases across the Sun’s cycle, and enhancing safety for the Apollo and Soviet crews who will venture beyond the protection of the van Allen belts on their way to the Moon.

What are the Soviets Up To?

The USSR has been remarkably quiet about its manned lunar programme. One could almost think that they had given up racing Apollo to the Moon, if not for the rumours and hints that constantly swirl around. Rumours abounded at the time of the tragically lost Soyuz-1 mission that it was intended to be a space spectacular, debuting in the Soyuz a new, much larger spacecraft which would participate in multiple rendezvous and docking manoeuvres, and possibly even crew transfers, with one or more other manned spacecraft.

Such a space feat has yet to occur, but the mysterious recent space missions of Cosmos-186 and 188 suggest that the Soviets have something of the sort in mind for the future, and are still quietly working to develop the techniques that they will need for lunar landing missions and/or a space station programme.

It Takes Two to Rendezvous

On 27 October, Cosmos-186 was launched into a low Earth orbit, with a perigee of 129 miles and an apogee of 146 miles and an orbital period of 88.7 minutes. Cosmos-187 was launched the following day, and there has been speculation that it was intended to be part of a rendezvous and docking demonstration with Cosmos-186 but was placed into an incorrect orbit. However, as is so often the case with Cosmos satellites, the Soviet authorities only described their missions as continuing studies of outer space and testing new systems, so the actual purpose of this mission remains a mystery.


A rare Soviet illustration of what is believed to be the Cosmos-186-188 docking

However, Cosmos-186 was joined by a companion on 30 October, when Cosmos-188 was placed into a very similar orbit with a separation of just 15 miles. This clearly demonstrates the precision with which the USSR can insert satellites into orbit. The two spacecraft then proceeded to perform the first fully automated space docking (unlike the manual dockings performed by Gemini missions from Gemini-8 onwards), just an hour after Cosmos-188 was launched. Soviet sources, and some electronic eavesdropping by the now-famous science class at Kettering Grammar School in England, using surprisingly unsophisticated equipment, indicate that Cosmos-186 was the ‘active’ partner in the docking. It used its onboard radar system to locate, approach and dock with the ‘passive’ Cosmos-188.

While the two spacecraft were mechanically docked, it seems that an electrical connection could not be made between them, and no other manoeuvres appear to have been carried out while Cosmos-186 and 188 were joined together. Perhaps there were technical issues surrounding the docking, but an onboard camera on Cosmos-186 did provide live (if rather low quality) television images of the rendezvous docking and separation, and some footage was publicly broadcast.

After three and a half hours docked together, the two satellites separated on command from the ground and continued to operate separately in orbit. Cosmos-186 made a soft-landing return to Earth on 31 October, lending credence to the speculations that it was testing out improvements to the Soyuz parachute system, while Cosmos-188 reportedly soft-landed on 2 November.

Speculating on Soviet Space Plans

Was Cosmos-186 a Soyuz-type vehicle, possibly testing out modifications made to prevent a recurrence of the re-entry parachute tangling that apparently led to the loss of Soyuz-1 and the death of Cosmonaut Komarov? Building on speculations from the time of the Soyuz-1 launch, there have even been suggestions that Cosmos-186, while unmanned, was a spacecraft large enough to hold a crew of five cosmonauts. There is also speculation that Cosmos-188 may have been the prototype of a new propulsion system for orbital operations. Does this mean, then, that the USSR is planning some kind of manned spaceflight feat in orbit to celebrate the 50th anniversary of the Communist Revolution? Or that it will soon attempt a circumlunar flight, to reach the Moon ahead of the United States?

Whatever their future plans may be, the automated rendezvous and docking of two unmanned spacecraft in Earth orbit shows that the USSR’s space technology is still advancing rapidly. The joint Cosmos 186-188 mission proves that it is possible to launch small components and assemble them in space to make a larger structure, even without the assistance of astronauts. This means that massive rockets like the Saturn V might not be required to construct space stations in orbit, or even undertake lunar missions, if the project is designed around assembling the lunar spacecraft in Earth orbit. Has the Cosmos 186-188 mission therefore been a hint of what the USSR's Moon programme will look like, in contrast to Apollo? Only time will tell…


No comments Leave A Comment
Science / Space Race

[October 28, 1967] Unveiling Venus – at Least a Little (Venera-4 and Mariner-5)

2 Comments



by Kaye Dee

Despite the hiatus in manned spaceflight missions while the Apollo-1 and Soyuz-1 accident investigations continue, October has been a very busy month for space activities – so much so that I’ve had to defer writing about some of this month’s events to an article next month!

Spaceflight Slowdown?

4 October saw the tenth anniversary of the launch of Sputnik-1, the Soviet satellite that surprised the world and ushered in the Space Age and the Space Race. Since that first launch, the pace of space exploration has been breathtaking, far surpassing what even its most ardent proponents in the 1950s anticipated.

In the famous Colliers’ “Man Will Conquer Space Soon” article series, reproduced even here in Australia, Dr Wernher von Braun predicted that the first manned mission to the Moon would not occur until the late 1970s

As part of the USSR’s Sputnik 10th anniversary celebrations, many space-focussed newspaper articles were published.  One of these, written by Voskhod-1 cosmonaut and engineer Dr. Konstantin Feoktistov, strongly hinted that Russia's next major space feat would be the launch of an orbiting space platform. This would certainly be an important development in establishing a permanent human presence in space and put the Soviet Union once again ahead in the Space Race, especially if the US and USSR lunar programmes are faltering.

Earlier this month, the head of the NASA, Mr James Webb, said it was increasingly doubtful that either the United States or the Soviet Union would land people on the Moon in this decade. He delivered a gloomy prognostication for the second decade of the Space Age, saying the entire US programme was “slowing down”. Mr. Webb criticised recent Congressional cuts of 10 per cent to the space-agency budget projected for the year ending next 30 June, saying that NASA was laying off over 100,000 people.

Administrator Webb also cast doubt on some proposed NASA planetary exploration missions. “The serious question is whether or not this country wants to start a Voyager mission to Mars in 1968”, he is reported to have said. The Voyager programme is a 10-year project that envisages sending two spacecraft to Mars (one to orbit around it, the other to land on its surface), with the additional possibility of landing a spacecraft on Venus and exploring Jupiter. These would undoubtedly be exciting missions that would reveal new knowledge about these planets, but Mr Webb said he had virtually no money for the Voyager programme as a result of the budget cut.

Parallel Planetary Probes: Venera-4 and Mariner-5

But possible future downturns in space activity can’t detract from this month’s big news: the safe arrival of two spacecraft at Venus!

Back in June, a suitable launch window meant that both the USSR and NASA sent spacecraft on their way to our closest planetary neighbour. First off the blocks was the Soviet Union, which launched its Venera-4 mission (generally known in the West as Venus-4) on 12 June from the Baikonur Cosmodrome in Kazakhstan. NASA’s Mariner-5 followed two days later, on 14 June, launched from Cape Kennedy.

Pre-launch photo of Venera-4

Venera-4 is the most recent Soviet attempt to reach the planet after Venera-2 and 3 failed to send back any data in March last year. There is some speculation that, since its previous Venus mission employed twin spacecraft, Russia may have also intended this Venus shot to be a two-spacecraft mission. It’s possible that the short-lived Cosmos 167 spacecraft, launched on 17 June, was Venera-4’s twin that failed to leave orbit, although with the secrecy that surrounds so much of the Soviet space program, who knows if we’ll ever get the truth of it? Venera-4 was itself first put into a parking orbit around the Earth before being launched in the direction of Venus. A course correction was performed on 29 July, to ensure that the probe would not miss its target.


Mariner-5 being prepared for launch

Mariner-5 is NASA’s first Venus probe since Mariner-2 in 1962. Originally constructed as a backup for the Mariner-4 Mars mission, that probe’s success meant that the spacecraft could be repurposed to take advantage of the 1967 Venus launch window. Interestingly, I understand from my friends at the Sydney Observatory that there were initial suggestions to send the Mariner back-up spacecraft to either comet 7P/Pons–Winnecke or comet 10P/Tempel, before the Venus mission was decided upon. While it’s useful to have additional data from Venus, it would have been fascinating to send an exploratory mission to a comet, since we know so little about these transient visitors to our skies.

At its closest, Venus is just 36 million miles from Earth, but Mariner-5 followed a looping flightpath of 212 million miles, to enable it to fly past Venus at a distance of around 2,500 miles (about 10 times closer than Mariner-2’s flyby). Australia’s Deep Space Network (DSN) stations at Tidbinbilla, near Canberra, and Island Lagoon, near the Woomera Rocket Range, were respectively the prime and back-up monitoring and control stations for Mariner-5’s mid-course correction burn that placed it on its close flyby trajectory.

Keys to Unlock a Mystery

Venus has always been a planet shrouded in mystery since its thick, cloudy atmosphere prevents any telescopic observation of its surface. For this year’s launch window, one could almost believe that Cold War tensions had been overcome and the USSR and USA had agreed to work together on a Venus exploration program, given that their two spacecraft effectively complement each other.

Venera-4’s mission was announced as “direct atmospheric studies”, with Western scientists speculating that this meant that it would follow Venera-3 in attempting to land on the planet’s surface. The spacecraft’s arrival at Venus has proved this speculation to be correct, and the few images of Venera-4 now available show the 2,436 lb spacecraft to be near-identical to Venera-3. 11 ft high, with its solar panels spanning 13 ft, Venera-4 carried a 1 metre (3 ft 3 in) spherical landing capsule that was released to descend through the atmosphere while the main spacecraft flew past Venus and provided a relay station for its signals.
Soviet models of the Venera-4 spacecraft and its descent capsule

The 844 lb descent capsule was equipped with a heat shield, capable of withstanding temperatures up to 11,000°C (19,800 °F) and had a rechargeable battery providing 100 minutes of power for the instruments and transmitter. During the flight to Venus the battery was kept charged by the solar panels of the carrier spacecraft. Supposedly, the entire Venera-4 probe was sterilised to prevent any biological contamination of Venus, but some Western scientists have cast doubt on this claim. The capsule was pressurized up to 25 atmospheres since the surface pressure on Venus was unknown until Venera-4’s arrival.
Picture of the Venera-4 descent capsule released by the USSR. Western scientists are wondering what that heat shield is made of

Information recently released by the Soviet Academy of Sciences has said that the descent vehicle carried two thermometers, a barometer, a radio altimeter, an atmospheric density gauge, 11 gas analysers, and two radio transmitters. Scientific instruments on the main body of the spacecraft included a magnetometer and charged particle traps, both for measuring Venus' magnetic field and the stellar wind on the way to Venus, an ultraviolet spectrometer to detect hydrogen and oxygen gases in Venus' atmosphere, and cosmic ray detectors.


Much smaller than Venera-4, the 5401b Mariner-5 was designed to flyby Venus taking scientific measurements: it was not equipped with a camera, as NASA considered this un-necessary in view of the planet’s cloud cover. NASA controllers initially planned a distant flyby of Venus, to avoid the possibility of an unsterilised spacecraft crashing into the planet, but the final close flyby was eventually chosen to improve the chances of detecting a magnetic field and any interaction with the solar wind.

As Mariner-4’s backup, Mariner-5 has the same basic body – an octagonal magnesium frame 50 in diagonally across and 18 in high. However, since it was heading to Venus instead of Mars, Mariner-5 had to be modified to cope with the conditions much closer to the Sun. Due to its trajectory, Mariner-5 needed to face away from the Sun to keep its high-gain antenna pointed at Earth. Its solar panels were therefore reversed to face aft, so they could remain pointed at the Sun. They were also reduced in size, since closer proximity to the Sun meant less solar cells were needed to generate the same level of power. Mariner-5's trajectory also required the high-gain antenna to be placed at a different angle and made moveable as part of the radio occultation experiment. A deployable sunshade on the aft of the spacecraft was used for thermal control, and Mariner-5 was fully attitude stabilized, using the sun and Canopus as references.
View from below showing the main components of Mariner-5

Mariner-5’s prime task was to determine the thickness of Venus’ atmosphere, investigate any potential magnetic field and refine the understanding of Venus’ gravity. Its suite of instruments included: an ultraviolet photometer, a two-frequency beacon receiver, a S-Band radio occultation experiment, a helium magnetometer, an interplanetary ion plasma probe and a trapped radiation detector. The spacecraft instruments measured both interplanetary and Venusian magnetic fields, charged particles, and plasmas, as well as the radio refractivity and UV emissions of the Venusian atmosphere.

During its 127-day cruise to Venus, Mariner-5 gathered data on the interplanetary environment. In September and October, observations were co-ordinated with measurements made by Mariner-4, which is on its own extended mission, following its 1965 encounter with Mars. Similar observations were made by Venera-4 during its flight to Venus, which found that the concentration of positive ions in interplanetary space is much lower than expected.

Missions Accomplished

A few days before it arrived at Venus, the Soviet Academy of Sciences requested assistance from the massive 250 feet radio telescope at the Jodrell Bank Observatory in the UK, asking the facility to track Venera-4 for the final part of its voyage. This has provided Western scientists with some independent verification of Soviet claims about the mission. Jodrell Bank even announced the landing of the Venera-4 descent capsule more than seven hours before it was reported by the Soviet news agency Tass!

On 18 October, Venera-4’s descent vehicle entered the Venusian atmosphere, deploying a parachute to slow its fall onto the night side of the planet. According to a story that one of the Sydney Observatory astronomers picked up from a Soviet colleague at a recent international scientific conference, because there was still the possibility that, beneath its clouds Venus might be largely covered by water (one of the main theories about its surface), the capsule was designed to float if it did land in water. Uniquely, the spacecraft’s designers made the lock of the capsule using sugar, which would dissolve in liquid water and release the transmitter antennae in the event of a water landing.

Although the Venera-4 capsule had 100 minutes of battery power available and sent back valuable data as it fell through the atmosphere, Jodrell Bank observations, and the official announcement from Tass, indicated that the signal cut off around 96 minutes. While it was initially thought that this meant that the capsule had touched down on the surface, and there were even early reports claiming it had detected a rocky terrain, questions are now being raised as to whether it actually reached the surface, or if the spacecraft failed while still descending. Tass has said that the capsule stopped transmitting data because it apparently landed in a way that obstructed its directional antenna. A recording of the last 20 seconds of signal received at Jodrell Bank was delivered to Vostok-5 cosmonaut Valery Bykovsky during a visit to the radio telescope on 26 October. Perhaps once it is fully analysed, the question of the capsule’s fate will be clarified. Of course, if the landing is confirmed, Venera-4 will have made history with the first successful landing and in-situ data gathering on another planet.

Diagram illustrating the major milestones during the Mariner-5 encounter with Venus on 19 October
Mariner-5 swept past Venus on 19 October, making a close approach of 2,480 miles. At 02:49 GMT the Island Lagoon DSN station commanded Mariner 5 to prepare for the encounter sequence and 12 hours later its tape recorder began to store science data. Tracked by the new 200 in antenna at NASA’s Goldstone tracking station, Mariner reached its closest encounter distance at 17:35 GMT, and minutes later entered the “occultation zone” before passed behind Venus as seen from the Earth. 17 minutes later, Mariner-5 emerged from behind Venus and completed its encounter at 18:34 GMT.

The following day, Mariner-5 began to transmit its recorded data back to Earth. Over 72½ hours there were three playbacks of the data to correct for missed bits. Mariner-5's flight path following its Venus encounter is bringing it closer to the Sun than any previous probe and the intention is for to be tracked until its instruments fail.

A Peep Behind the Veil

So what have we learned about Venus from these two successful probes? There has long been controversy among astronomers as to whether Venus is a desert planet, too hot for life, or an ocean world, covered in water. The data from both Venera and Mariner has come down firmly on the side of the desert world hypothesis.
Astronomical artist Mr. Chesley Bonestell's 1947 vision of a desert Venus

The effects of Venus’ atmosphere on radio signals during Mariner-5’s occultation experiment have enabled scientists to calculate temperature and pressure at the planet's surface as 980°F and 75 to 100 Earth atmospheres. These figures disagree with readings from Venera 4 mission, which indicate surface temperatures from 104 to 536°F and 15 Earth atmospheres’ pressure, but both sets of data indicate a hellish world, with little evidence of water and an extremely dense atmosphere.

Venera has established that Venus’ atmosphere consists almost exclusively of carbon dioxide with traces of hydrogen vapour, very little oxygen, and no nitrogen. Mariner-5's data indicates that the atmosphere of Venus ranges from 52 to 87 per cent carbon dioxide, with both hydrogen and oxygen in the upper atmosphere: it found no trace of nitrogen. It detected about as much hydrogen proportionately as there is in the Earth's atmosphere. Mariner scientists, however, have pointed out that further analysis and refinements of both Russian and American data could clear up the apparent discrepancies.

Although Mariner’s instruments could not penetrate deeply enough into Venus’ atmosphere to obtain surface readings, they determined that the outer fringe of the atmosphere, where atoms were excited by direct sunlight, had a temperature of 700°F, below which was a layer close to Zero degrees, lying about 100 miles above the surface. Chemicals in the atmosphere, or electrical storms far more intense than those of Earth, give the night side of the planet an ashen glow.
A view of the Mariner-5 control room at JPL during the Venus encounter

A fascinating finding is that the dense atmosphere acts like a giant lens, bending light waves so they travel around the planet. Both American and Russian researchers agree that astronauts standing on the surface would feel like they were “standing at the bottom of a giant bowl”, with the back of their own heads a shimmering mirage on the horizon. Vision would be so distorted that the sun would appear at sunset to be a long bright line on the horizon: its light could penetrate the atmosphere, but not escape because of scattering, so that it would appear as a bright ball again for a time at sunrise until the atmosphere distorted its rays.

Neither spacecraft found any evidence of radiation belts comparable to the Van Allen belts around the Earth, and both established that Venus has only a very slight magnetic field, less than 1% that of the Earth. Observing how much Venus' gravity changed Mariner 5's trajectory established that Venus’ mass is 81.5 % that of Earth. Tracking of radio signals from Mariner-5 as it swept behind Venus, has shown that the planet is virtually spherical, compared with Earth's slightly pear-shape. (Other celestial mechanics experiments conducted with Mariner-5 obtained improved determinations of the mass of the Moon, of the astronomical unit, and improved ephemerides of Earth and Venus).

Life on Venus?

Although neither spacecraft was equipped to look for life on Venus, their findings will undoubtedly contribute to the growing scientific controversy over whether life does, or can, exist there. Based on its Venera results, the Soviet Union has said that Venus is “too hot for human life”, although Sir Bernard Lovell, the Director of Jodrell Bank Station, has suggested that future probes might find remnants of some early organic development, even if conditions today make life highly unlikely. However, German/American rocket pioneer and space writer Dr Willy Ley, has suggested there might be the possibility of “a very specialised kind of life on Venus”, possibly at the poles, which he believes would be cooler that the currently measured temperatures. The USSR’s Dr Krasilnikov has said that Earth bacteria could withstand the atmospheric pressure on Venus and might even be able to survive the intense heat.


But just as Mariner-4 demolished fantasies of canals made by intelligent Martians, so the results from Venera-4 and Mariner-5, in allowing us a glimpse behind its cloudy veil, have swept aside any number of science fiction visions of Venus. Edgar Rice Burroughs’ verdant Amtor, with its continents and oceans, and Heinlein’s swampy Venus are no more. They have been replaced by a new vision of a hellish Venus, almost certainly inimical to life, with fiery storms raging in a dense, metal melting atmosphere which traps and bends light waves in a weird manner. I wonder where the SF writers of the future will take it?



2 Comments Leave A Comment
